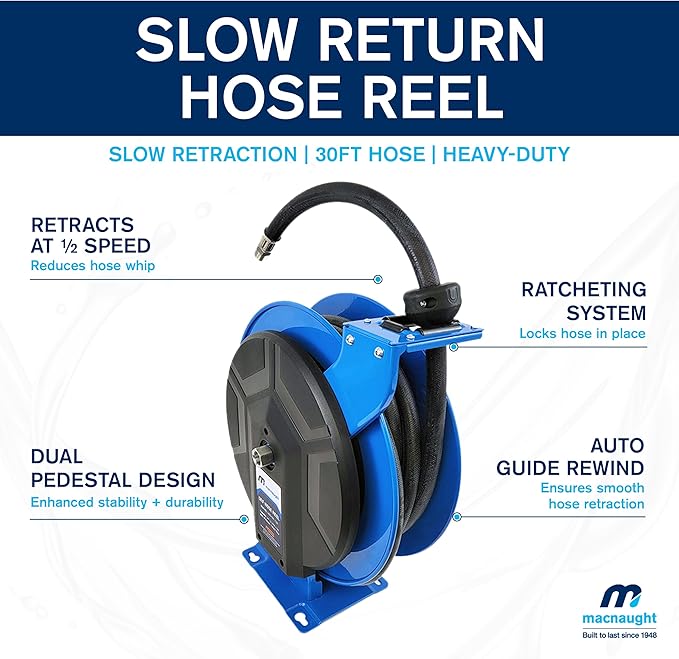

Retractable M3 Heavy Duty Slow Retraction UREA/DEF Reel ¾” x 30 ft – PN# M3D-DEF-7530
All Macnaught M3 Slow Retraction Hose Reels were designed with operator and equipment safety in mind. Heavy Duty, Dual Pedestal Design with a Patented Speed Control Mechanism, slows retraction to a safe ½-speed pace. Greatly reduces hose whip, perfect for production/repair facilities requiring the safest environment for employees. Protect from vehicle or equipment damage due to a slipped hose with an air tool or oil dispensing gun on the end. Air Water Service uses a premium grade NBR Rubber Hose rated to 300 PSI. Oil Service uses an SAE 100R1 Wire Braided Hose Rated to 2320 PSI. DEF Service uses an EPDM Hose rated to 150 Psi. Lead Hose not provided.
Rated for Mobile Truck Mount Applications.
INCLUDES 3 YEAR WARRANTY!
Macnaught M3 Specifications
| Description |
Retractable Hose Reel for DEF |
| Part No. |
M3D-DEF-7530 |
| Application |
DEF
|
| Hose Id |
3/4″ |
| Hose Length |
30’ |
| WP (psi) |
150PSI |
| Net Weight |
45lbs |
| Case |
Blue Alloy Steel |
| Hose Material |
Rated to 150 PSI. EPDM Hose |
| Max Temp |
-40°F to 212°F |
| Reel Inlet |
3/4” FNPT Stainless Steel |
| Hose Outlet |
3/4” FNPT Stainless Steel |
| Warranty |
3 Year |
| Fully Serviceable |
√ |
M3D-DEF-7530 Data Sheet: Link
M3D-DEF-7530 Instruction Manual: PDFM3D-DEF-7530 Dimensions PDF
