Highly Accurate Solvent Flow Meter Measurement from .13 GPH to 250 GPM
![](http://www.macnaughtusa.com/cdn/shop/files/ExD-Extraction-Process-Methanol-1_{width}x.png?v=1677766892)

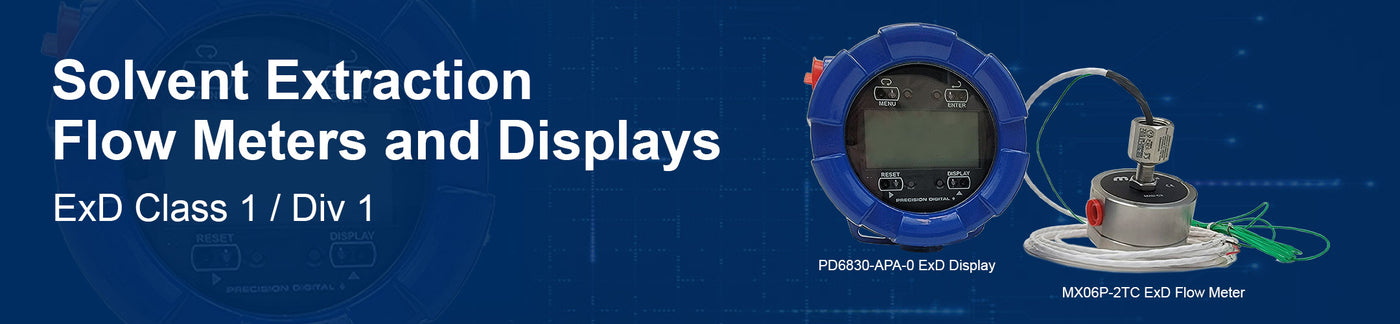

Macnaught USA offers in stock Heavy Duty Industrial Designed ExD Flow Meters and Displays. Built on the legendary MX Series Platform – accuracy remains at .5% of flow and .03% repeatability. Intrinsically Safe Meters & Displays are in stock as well.
Industries Served:
- Cannabis / Hemp – Butane, Methanol, Ethanol, Propane
- Perfume / Fragrance – Ethanol, Methanol, DPG, Citrus Oils
- Industrial / General – Hexanes, Toluene, Ethers, Kerosene, Acetone, MEK, Xylene, Benzene, Pentane, Heptane, IPA and other clean process solvents.
Macnaught is the largest global oval gear flow meter manufacturer and has been since 1964. In addition to ExD and I.S. applications, we carry a large inventory of general industry duty industrial meters and displays.
Specification
Our MX-SERIES flow meters with ExD pulse output features:
- Pressure ratings up to 2000psi/138 bar.
- 316 stainless steel or 6061 anodized aluminum flow meter body and oval gear rotor construction, with FEP seals.
- Supply voltage: 5-27Vdc @ ≤ 15mA.
- Output voltage: 0-Vs NPN (25mA max. sinking current). Reverse polarity protected. 22 AWG lead wires: 3 meter length. 1/2″ FNPT or M20x1.5 conduit thread.
- Accuracy of ±0.5% of reading, and ±0.03% repeatability.
![](http://www.macnaughtusa.com/cdn/shop/files/meters22_{width}x.jpg?v=1677772277)
![](http://www.macnaughtusa.com/cdn/shop/files/meters25_{width}x.jpg?v=1677773998)
Certifications
- ATEX & IECEx:
II 2 G Ex db IIC T6…T3 Gb| FM16ATEX0086X & IECEx FMG 16.0035X
T3 @ -55°C ≤ Tamb ≤ +140°C
T4 @ -55°C ≤ Tamb ≤ +112°C
T5 @ -55°C ≤ Tamb ≤ +77°C
T6 @ -55°C ≤ Tamb ≤ +62°C - CE: Compliance with EN55011, EN50082-2
- USA & Canada:
Class 1, Division 1
GROUP ABCD T6…T3
Class 1, Zone 1, AEx/Ex dbIIC T6…T3 Gb
FM16US0288X & FM16CA0147X
T 3 @ -50°C ≤ Tamb ≤ +140°C
T4 @ -50°C ≤ Tamb ≤ +112°C
T5 @ -50°C ≤ Tamb ≤ +77°C
T6 @ -50°C ≤ Tamb ≤ +62°C
Receive an Immediate Flow Meter Proposal or Call our Meter Hotline - +1 (813) 896-2710
