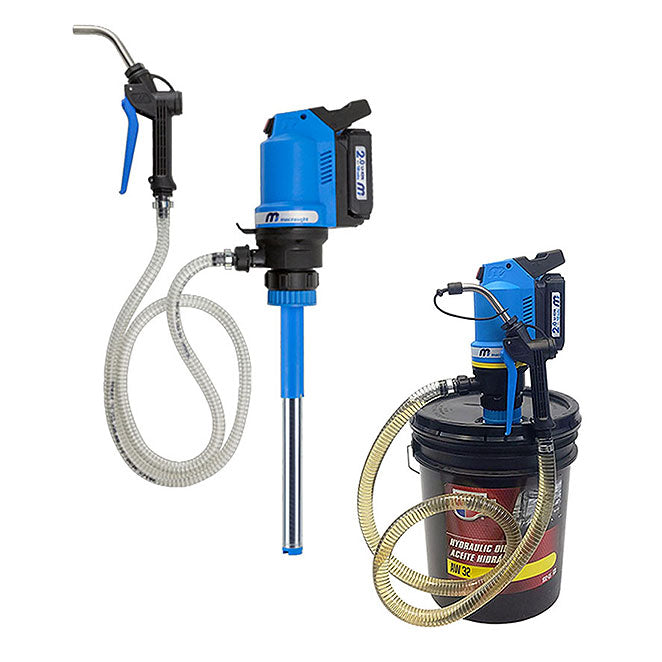

Macnaught BOP20HV 5 Gallon Battery Powered Oil Pump Kit - PN# BP20S-OHU

This 5 Gallon Bucket Oil Dispenser Pump kit has everything needed to pump oil. Powerhead, Stem with 5ft of 3/4 hose with On Demand Nozzle, 18V Li-Ion Battery, Battery Charger, 1 Pail Adapter. Designed for 5 Gallon Oil Pails up to 140W. No need to use cumbersome and difficult to dispense hand pumps or transfer oils manually to smaller containers. Place the BOPHV into any 5 gallon oil container, flick the Powerhead on, and engage the on-demand flow nozzle. It’s that easy!

*pails or containers not included

INCLUDES 2 YEAR WARRANTY!

Macnaught BP20S-OHU Specifications

Macnaught BP20S-OHU Features and Benefits

• On Demand control nozzle
• Portable Powerhead (Powers multiple stems)
• Sealed wetted parts
• Separate Powerhead – multiple oils with one Powerhead 18V rechargeable 2.0Ah battery delivers up to 40GAL
• Oils up to SAE140 / ISO680
• Flow rates up to 1.5+GPM
• No more pumping by hand to reduce fatigue
• No air required, eliminates costly air pumps
• No funnels needed, reducing spillage

Operations Manual: PDF
Data Sheet: PDF

WATCH PRODUCT VIDEO >>

WATCH PRODUCT IN USE VIDEO >>

5 Gallon Bucket Oil Dispenser Pump kit Video>>

How To Order

The BP20S-OHU Oil Pump kit has all items needed to dispense Oil in 5 Gallon Pails up to 140W/ISO680.

• Start with this kit; you can add stem kits ( these are separate items )  for differing oils and avoid cross-contamination.


• The Oil Pump Kit comes with (1) Battery, (1) Charger, (1) Pail Adapter, (1) Removable Powerhead (1) On-Demand Nozzle with 5 ft of PVC spiral wound hose.


• Most BOP users purchase a spare BOP Battery to have one battery working and one battery charging >  Get Battery Here

Frequently Asked Questions

Q: Can I use a Non-Macnaught 18V Battery on the BOP?
A: No, BOP requires a Macnaught Battery

Q: Can I store the Powerhead outside?
A: No, the BOP Powerhead is not rated for rain conditions. Store the Powerhead in a dry location. Caution: Do not drop the Powerhead- damage can occur at any distance drop.

Q: Can I pump diesel with BOP?

A: No, only the rated fluids. Yellow Ring designates Hydraulic or Engine Oils, Green Ring designates Coolant, Red Ring designates ATF

Fuels of any type are very dangerous to pump and will damage the BOP seals. Only Oils, Coolant or ATF. No other fluids are warranted.

Q: Can BOP be used for Marine Outboard fills?

A: Yes, we have many Marine Mechanics using BOP for this application. You will need to modify the Nozzle Tip to accommodate the type of Outboard connection you will use

Q: Is BOP 3A or Sanitary compliant?

A: No, BOP can only be used with rated fluids.

Q: Does BOP work with 2.5 Gallon Jugs?

A: Yes, BOP20 does fit

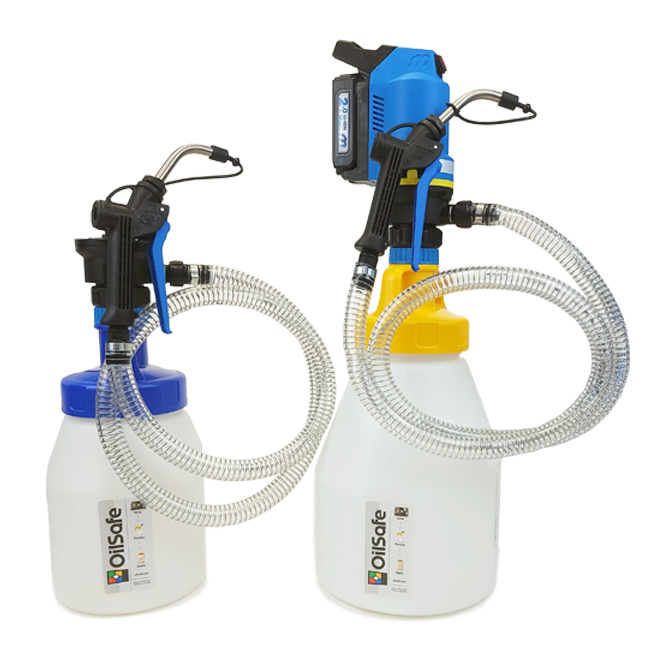

Q: Will BOP fit into my Oil Safe or other containers?

Yes, BOP20 fits perfectly with 5-liter and 10 Liter Oils Safe Containers with their Utility Lid.

The BOP20 also fits Des Case 7-Liter and 10-Liter and Trico 3-gallon and 4-gallon containers with Pump Lids.

Q: Can I run the BOP dry?

A: No, do not allow the BOP to run dry. Impeller damage will occur.

Q: Is the BOP serviceable?

A: Yes, we have Impeller Kits in stock.

Q: Do you offer a meter with the BOP?

A:Yes – easy to install and operate > BOP Meter

Q: Can I use an Oil Control Gun with the BOP?

A: No, non-drip nozzles will not operate correctly with the BOP.

Use only the BOP Inline Digital Meter PN# IM012EB-01

Q: My 5 Gallon Pail is an odd size, will the BOP20 work?

A: Yes, the adapter fits most pail bungs and the BOP comes with an adjustable sleeve to evacuate fluids on taller pails.

Q: My BOP is running slower at cold temperatures – why?

A: Oils thicken with lower temperatures, and cooler weather will slow the BOP flow rate. We recommend keeping oil containers as warm as possible indoors or with heating blanket wrap systems. BOP works best at 60F plus.

Q: My BOP stopped Pumping. The battery is charged, Powerhead light is on – what do I do?

A: Inspect the Impeller for Damage or Plugging > BOP Manual
