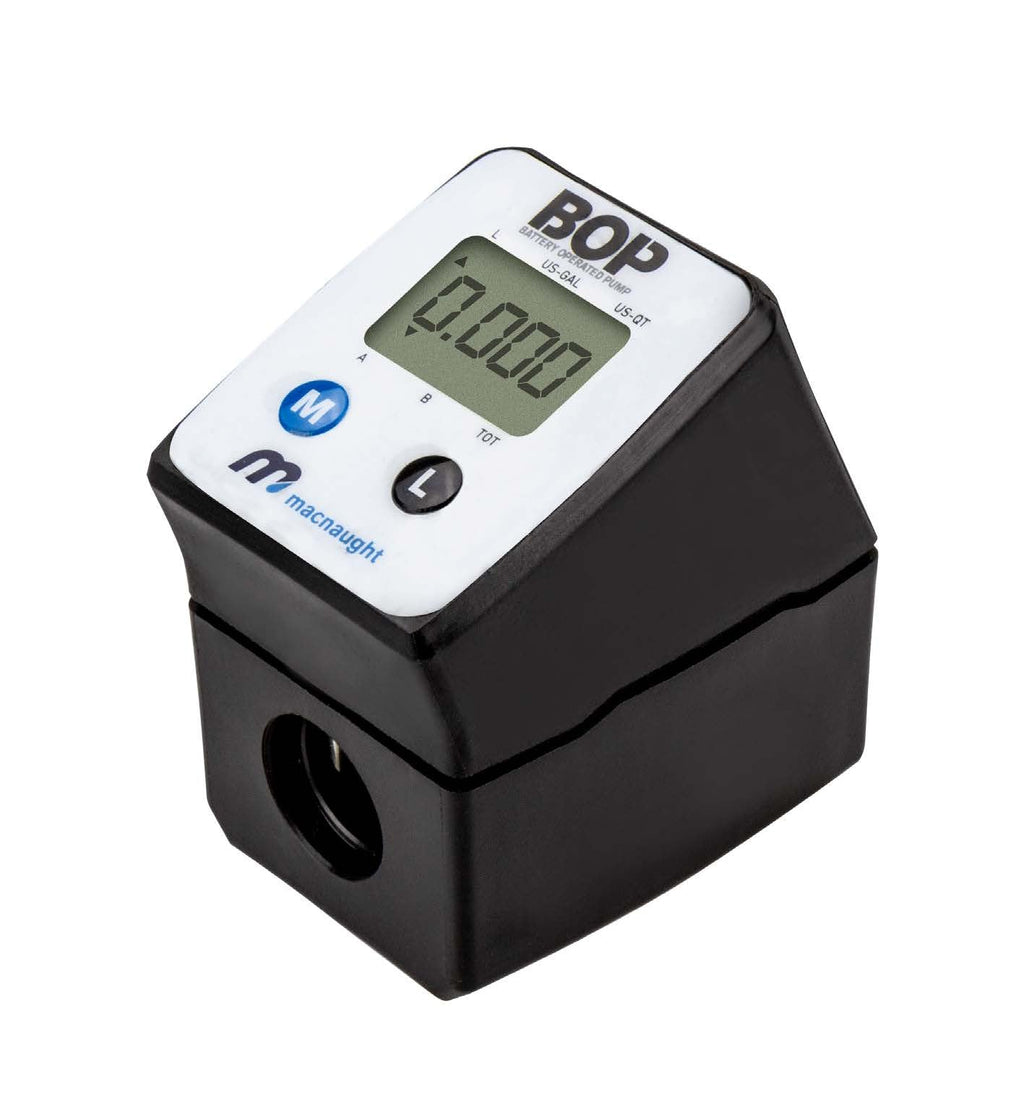

Macnaught Digital Inline Meter for all BOP Products. Registers in Gallons, Quarts, and Liters. Works with 140W / ISO680 oils, DEF, Coolant and ATF. Flowrate up to 2.7 GPM.

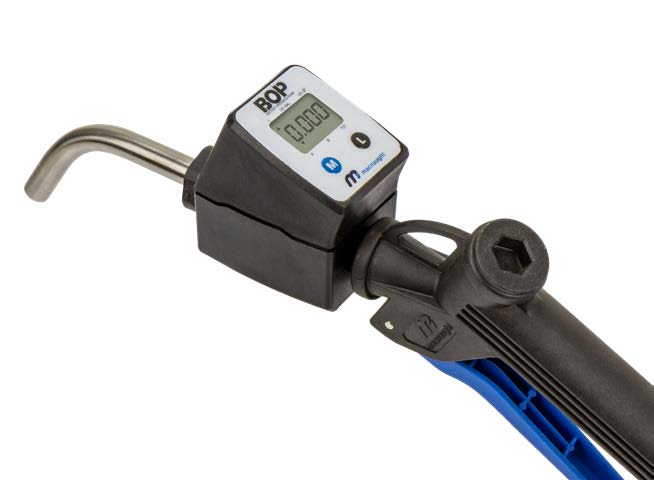

Installs Easily within minutes on any BOP Dispensing Nozzle
INCLUDES 2 YEAR WARRANTY!
Macnaught Digital Inline Meter Specifications
| Flow Rate |
up to 2.7 GPM |
| Operating Temperature |
-4 °F to +158 °F |
| Operating Pressure |
20psi (Max 60psi) |
| Accuracy |
+/- 2% of Reading |
| IP Rating |
IP65 |
| Inlet Connection |
1/2” Inlet Connector Supplied |
| Outlet Connection |
1/2” BSP (F) |
| Fluids |
140W / ISO680 oils, DEF, Coolant & ATF |
| Power |

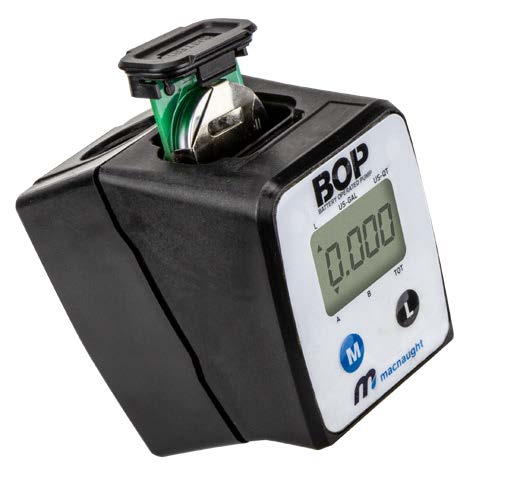

1 x Cr2450 3V Lithium Coin Battery |
| Warranty |
2 years |

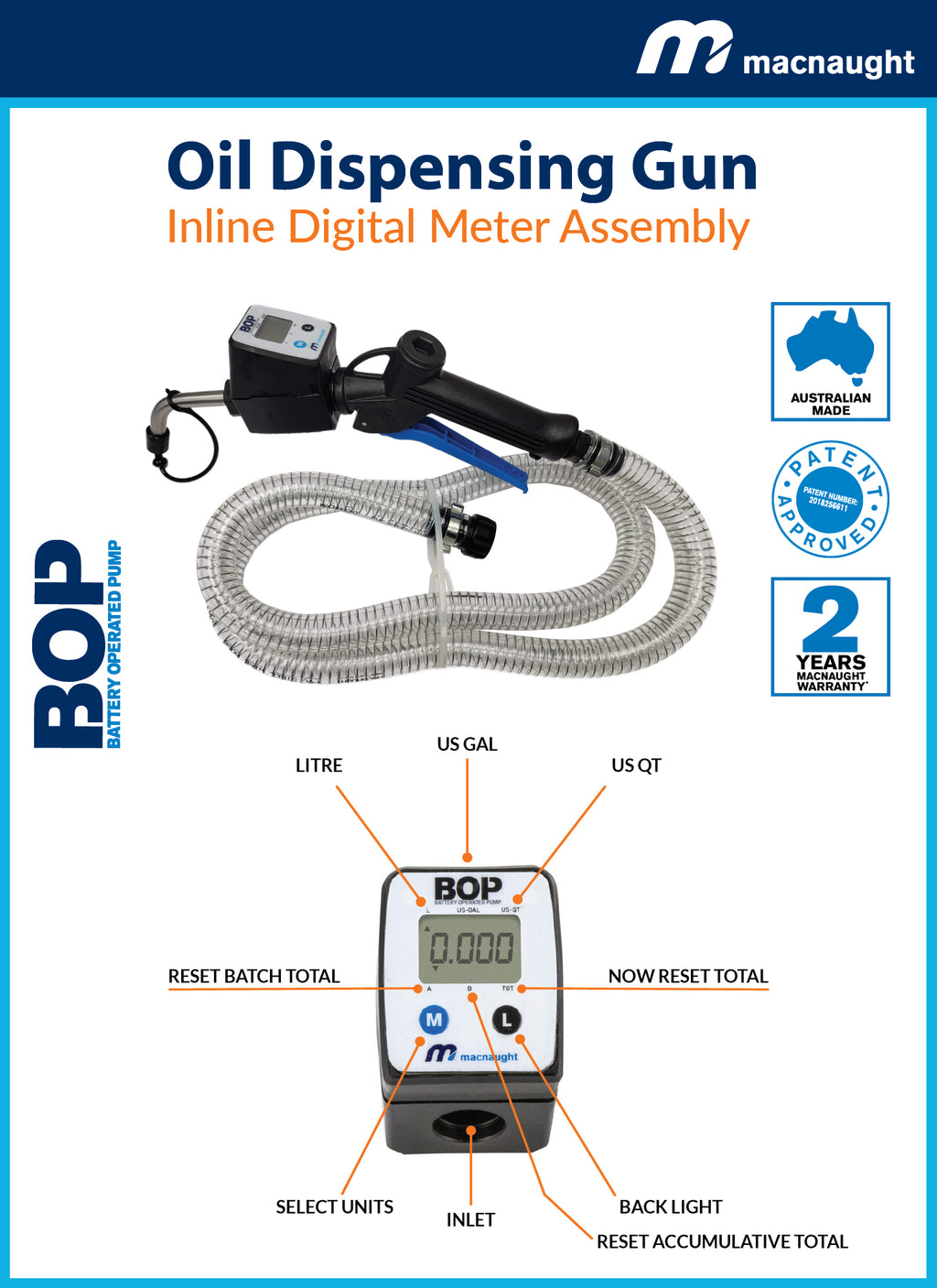

Macnaught BOP Digital Inline Meter Features and Benefits
- 360º rotation of the meter
- Back Light Function
- Four Digit Display
- Resettable batch total
- Resettable accumulative total
- Non resettable accumulative total
- Metric and Imperial Units
- Quarts / Gallons / Liters
Operations Manual: PDF
Data Sheet: PDF
Inline Digital Meter Demo Video >>
Inline Digital Meter Assembly Video >>
