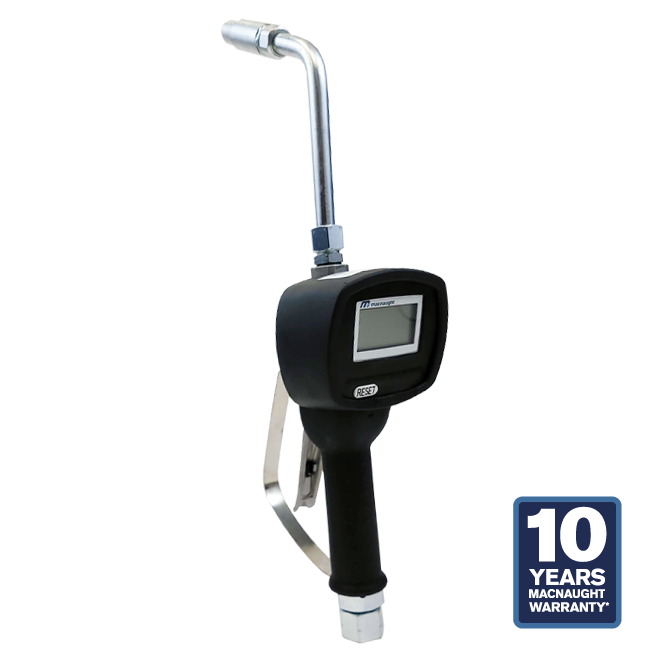

Metered Oil Control Gun, Black shroud, rigid ext., trigger guard, locking trigger, non-drip auto nozzle, 1/2″NPT inlet & LCD with Batch & Total.

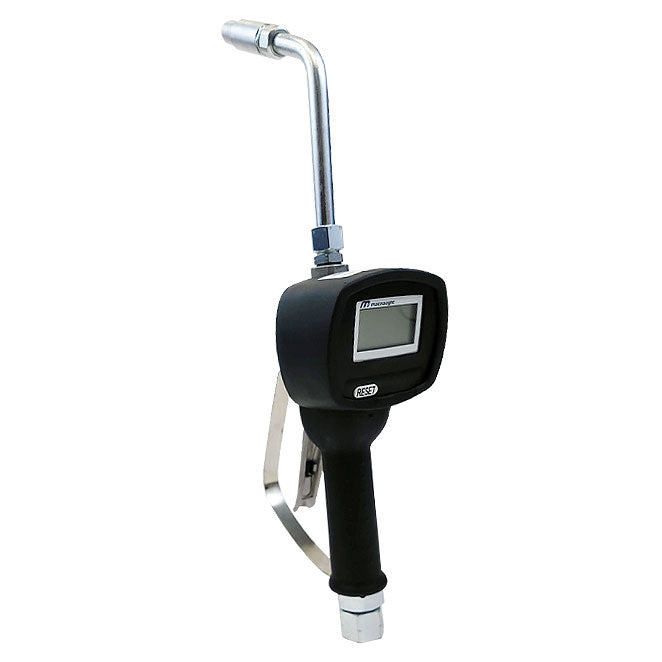

Macnaught offers the HG55R-02 Electronic oil control gun with rigid extension. Features include, locking trigger and non-drip nozzle, resettable batch total and a non-resettable total. The meter accuracy is +/- 0.5% of reading, working pressures up to 1500psi (10,350kPa) and flow rates up to 8 gallons per minute. Used for oil, ATF and antifreeze up to a maximum viscosity of SAE 140. All Macnaught oil control guns come with a fully supported 10-Year Warranty!
INCLUDES 10 YEAR WARRANTY!
Frequently bought together with: Ratio Air Operated Oil Stub Pump OILMASTER® T312-02 or the Ratio Air Operated Oil Stub Pump OILMASTER® T512-02Macnaught Metered Control Gun Specifications
|Inlet Swivel||1/2″ NPT (F)|
|Meter||oval gear / digital|
|Meter Accuracy||+/-.05% (lube oils)|
5-digit resettable batch totalizer
6-digit accumulative totalizer
sleep mode to conserve battery life
EEPROM information retention for battery change
|Non drip nozzle||automatic|
Metered Control Guns Data Sheet: PDF
Instruction Manual: PDF
Features & Benefits:
- Oval gear digital meter
- Digital meter or Electronic meter +/- 0.5 %
- 5-digit resettable batch totalizer
- 6-digit accumulative totalizer
- Auto Non-Drip Nozzle
- Flexible extension
- 1/2"NPT swivel inlet
- Trigger lock
- Fully serviceable
- Accurate control and measurement of oil usage.
- Gun complete with ridged extension and automatic nozzle
