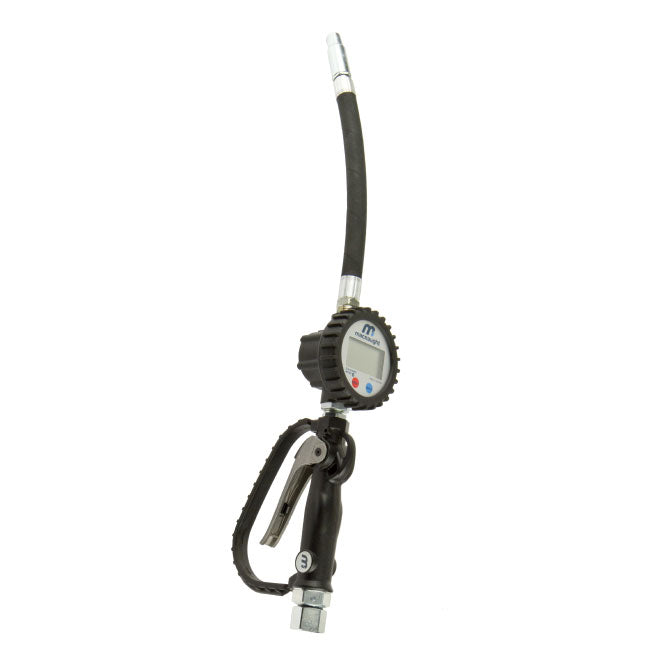

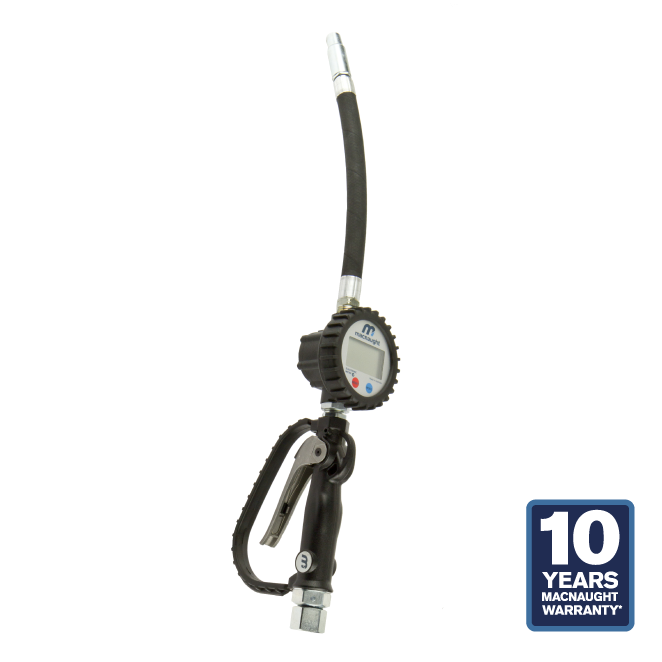

Metered Control Gun HG20 & IM012E, 1/2″ NPT inlet, flexible extension, 30 LPM/8 GPM flow rate, 1000psi.
Macnaught offers the HG20F-012E-02 highly accurate electric metered oil control with a flexible extension and automatic non-drip nozzle. The meter features a 6-digit totalizer and resettable batch total. It comes with a trigger guard, latching trigger and is fully serviceable. With a ½ inch NPT inlet and maximum working pressure up to 1000 psi this gun delivers a flow rate of up to 8 gallons a minute. Used for oil, ATF and antifreeze up to a maximum viscosity of SAE 140.
INCLUDES 10 YEAR WARRANTY!
Frequently bought together with: Ratio Air Operated Oil Stub Pump OILMASTER® T312-02 or the Ratio Air Operated Oil Stub Pump OILMASTER® T512-02Macnaught Metered Control Gun Specifications
|Flow Range||up to 8gal(30L)/min|
|Inlet Swivel||1/2″ NPT (F)|
|Features||6 digit totalizer|
|Extension||Flexible with non-drip nozzle|
|Non drip nozzle||Automatic|
|Parts Guarantee||10 years|
|Compatible Fluid||engine, gear, ATF, hydraulic oils up to SAE140 viscosity & anti-freeze/anti boil|
|Max Working Pressure||1000psi(6900kPa)|
- Digital meter accurate to +/- 0.5%
- 6-digit totalizer
- Auto Non-Drip Nozzle
- Flexible extension
- 1/2″NPT swivel inlet
- Trigger guard
- Trigger lock
- Fully serviceable
