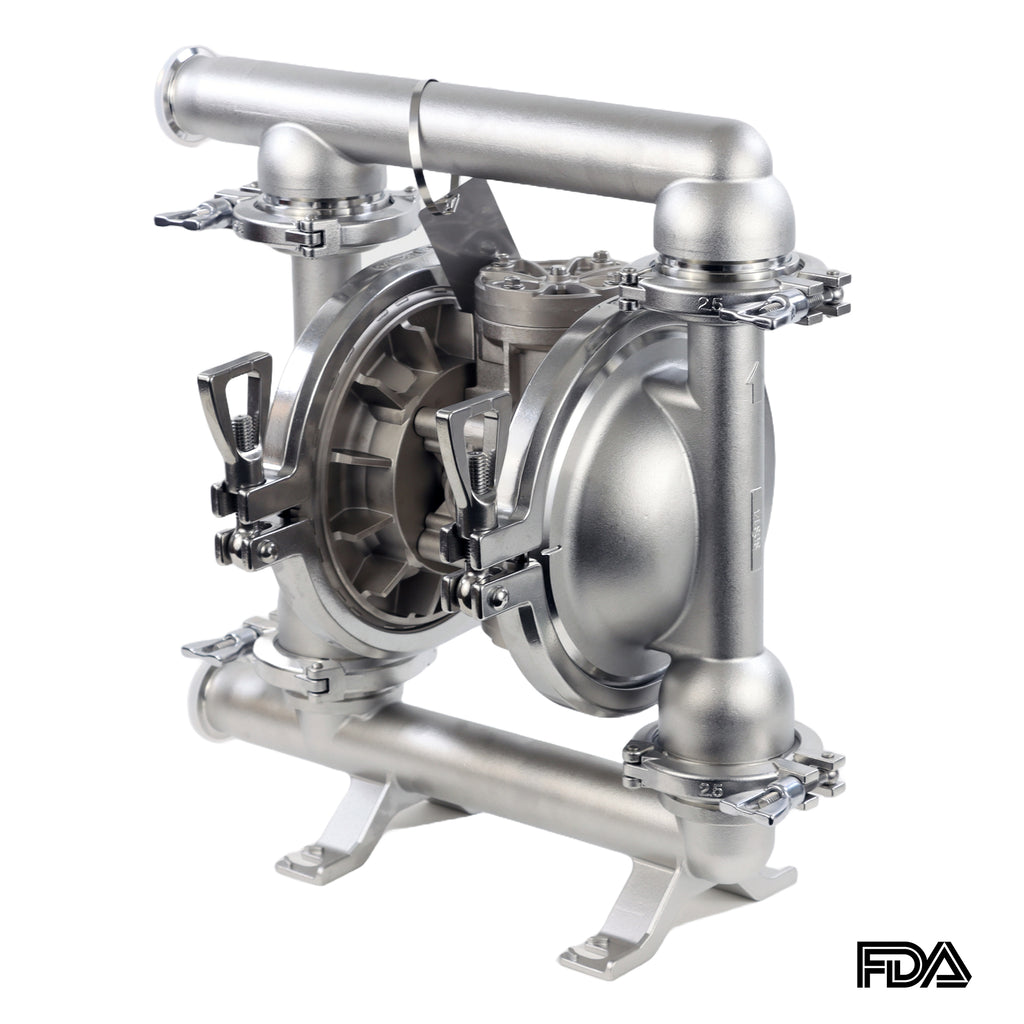

Experience the next level of efficient fluid transfer with our Max Flow Double Diaphragm Pump Series. Designed and manufactured in Japan, the Macnaught Max Flow range delivers industrial-grade process pumping solutions. This FDA Compliant Air Operated Double Diaphragm Pump operates at a 1:1 ratio with a maximum flow rate of 47 GPM, ensuring high-volume output with low air consumption. Includes a 5-Year Pump Body Warranty.
M-DDP25SW-024-02
| Parameter |
Specification |
| Max Flow Rate |
47.6 GPM |
| Fluid Inlet/Outlet |
ISO 1.5” Tri Clamp |
| Air Inlet |
3/8" NPT (F) |
| Operating Air Pressure |
30 / 100 PSI |
| Max Solid Size |
8mm / .31 inch |
| Suction Lift |
11.5 ft (dry) & 26.2 ft (wet) |
| Liquid Temp (°F) |
32°F – 212°F |
| Noise Level (ISO 1996) |
83 dB |
| Diaphragm |
WETTED PTFE・EPDM Backing |
| Casing |
Stainless Steel |
FEATURES
- Includes SS Air Inlet Ball Valve and Exhaust Muffler
- Handles Slurries: Transfers high-viscosity, abrasive slurries.
- Optimized Flow: Lighter spool ensures faster, smoother operations
- Effortless Maintenance: Easily accessible air motor for quick and hassle-free servicing.
- Dry-Run Safe: No overheating, runs without liquid.
- Deadhead Resistant: Withstands closed discharge without damage
- Self-Priming: Eliminates the need for manual priming.
-
FDA Compliant: Diaphragms, Check Values, Seats, Guides and Seals
- Diaphragm: PTFE with EPDM backing
- Pump Wetted Parts: Stainless Steel and PTFE.
Typical Fluids*:
Food & Beverage, Pharmaceuticals, Cosmetics & Personal Care, Nutraceuticals, Chemicals, and Petrochemicals.
* Please refer to Max Flow Series Diaphragm Pumps chemical handbook for fluid compatibility
Need a flow meter for your pump? Check out our MX Meter Collection Here
Product Sales Sheet: PDF
Instruction Manual: PDF
Service Manual: PDF
Additional Specs:
- 47.6 GPM
- Weight: 43 Pounds
- Max Discharge Pressure: 100 PSI
- Max Air Consumption: 56.5 SCFM
- Max Discharge Volume / Cycle: .16 Gallons
