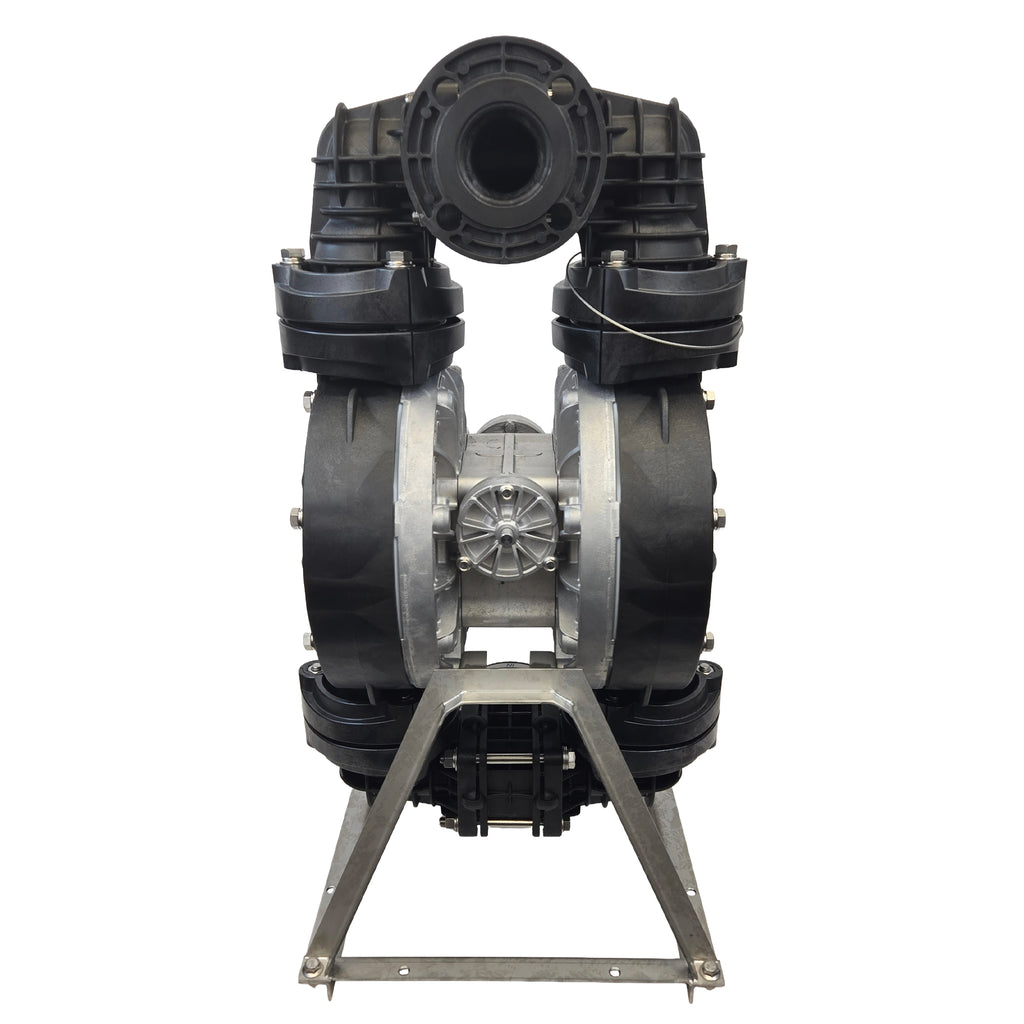

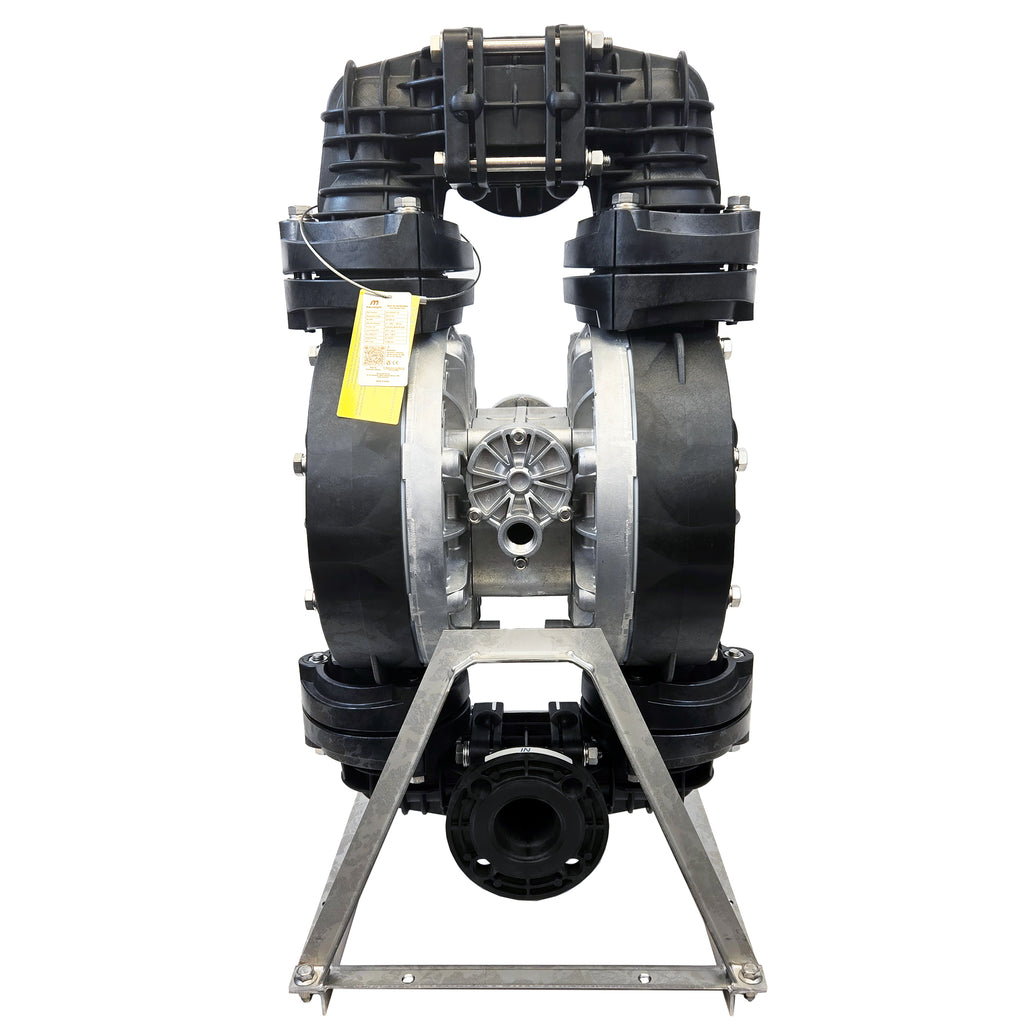

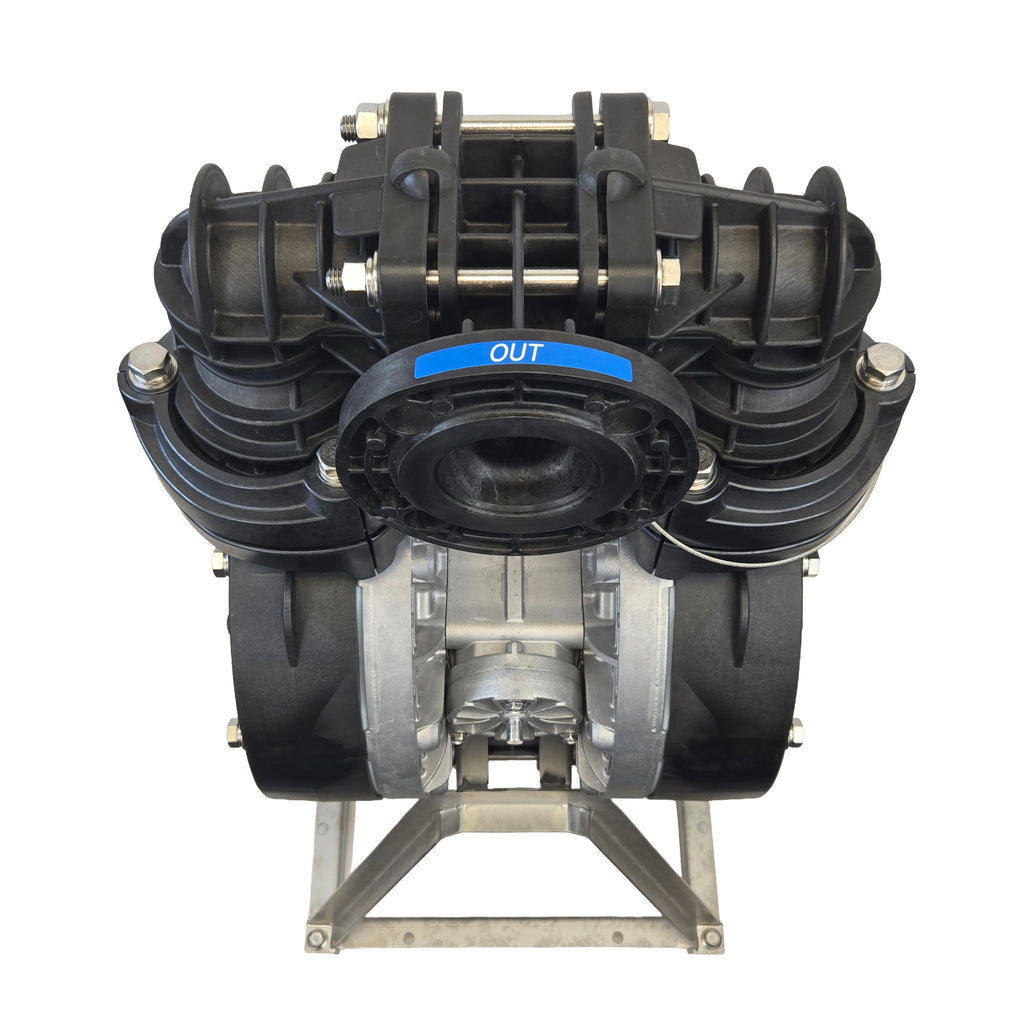

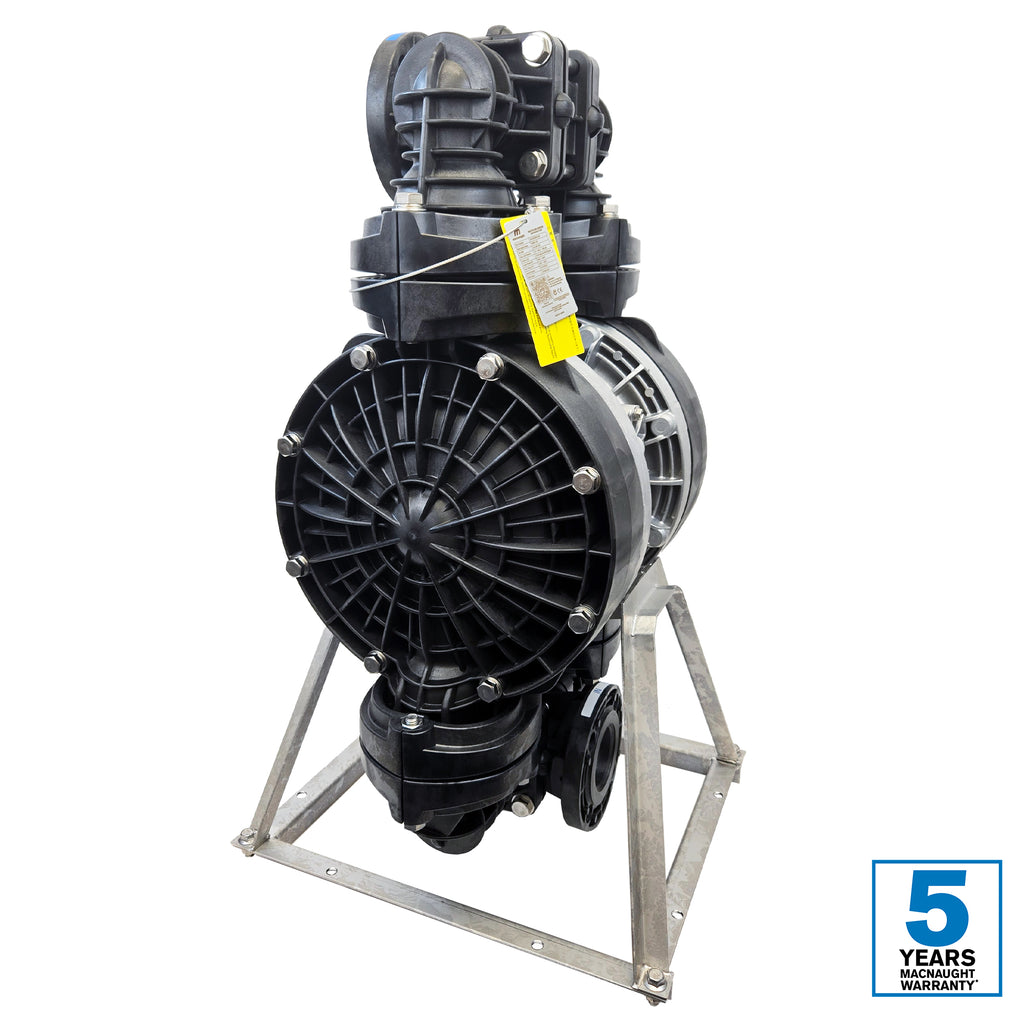

Experience the next level of efficient chemical fluid transfer with our Max Flow Double Diaphragm Pump Series. Designed and manufactured in Japan, the Macnaught Max Flow range delivers industrial-grade process pumping solutions. This 2" PVDF Body / Teflon Diaphragm AODD Pump operates at a 1:1 ratio with a maximum flow rate of 158 GPM, ensuring high-volume output with low air consumption. Includes 2inch ANSI Connection along with a 5-Year Pump Body Warranty. PVDF Body and Teflon Diaphragms ensure compatibility with a wide range of harsh chemistries.
M-DDP50VT-02
| Parameter |
Specification |
| Max Flow Rate |
158 GPM |
| Fluid Inlet/Outlet |
2" ANSI 150 2B |
| Air Inlet |
3/4" NPT (F) |
| Operating Air Pressure |
29 / 100 PSI |
| Max Solid Size |
8mm / .31 inches |
| Suction Lift |
6.5 ft (dry) & 26.2 ft (wet) |
| Max Air Consumption |
212 SCFM |
| Noise Level (ISO 1996) |
100 dB |
| Diaphragm |
PTFE |
| Casing |
CFPVDF |
FEATURES

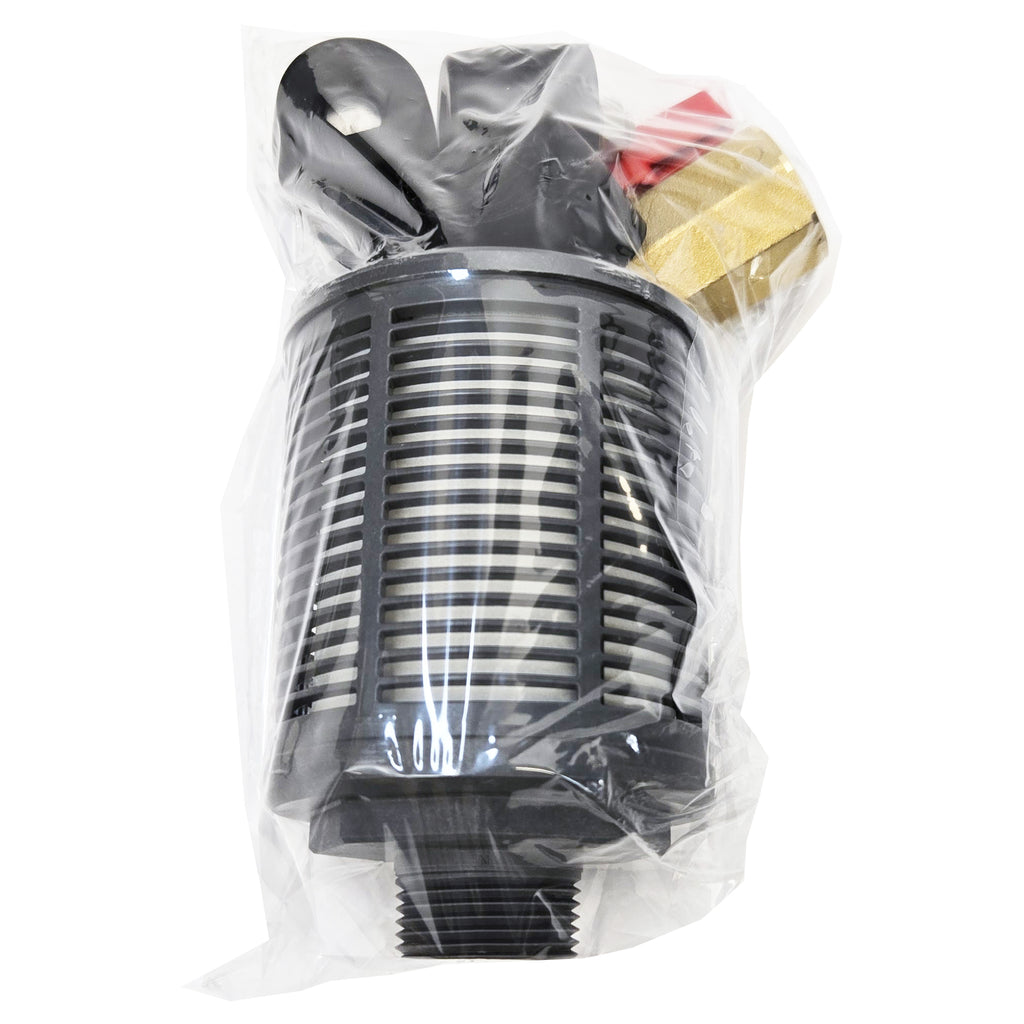

- Includes Air Inlet Ball Valve, Exhaust Muffler, and Rubber Leveling Feet
- The PVDF Body and Teflon Diaphragm MOC pumps a wide range of Acids, Caustics, Solvents, and other aggressive chemicals. Consult our chemical compatibility guide.
- Optimized Flow: Lighter spool ensures faster, smoother operations
- Effortless Maintenance: Easily accessible air motor for quick and hassle-free servicing.
- Dry-Run Safe: No overheating, runs without liquid.
- Deadhead Resistant: Withstands closed discharge without damage
- Self-Priming: Eliminates the need for manual priming.
- No inline lubrication required: Reduces maintenance and operational costs.
- Diaphragm: PTFE.
- Pump Wetted Parts: CFPVDF and PTFE
Typical Fluids*:
Corrosive Chemicals, including Acids, Caustics, Solvents and other fluids
* Please refer to Max Flow Series Diaphragm Pumps chemical handbook for fluid compatibility
Need a flow meter for your pump? Check out our MX Meter Collection Here
Product Sale Sheet: PDF
Instruction Manual: PDF
Service Manual: PDF
Material Certificate: PDF
Additional Specs:
- 158 GPM
- Weight: 98 Pounds
- Max Air Consumption: 211.86 SCFM
- Max Discharge Pressure: 100 PSI
- Discharge Volume / Cycle: .53 Gallons
