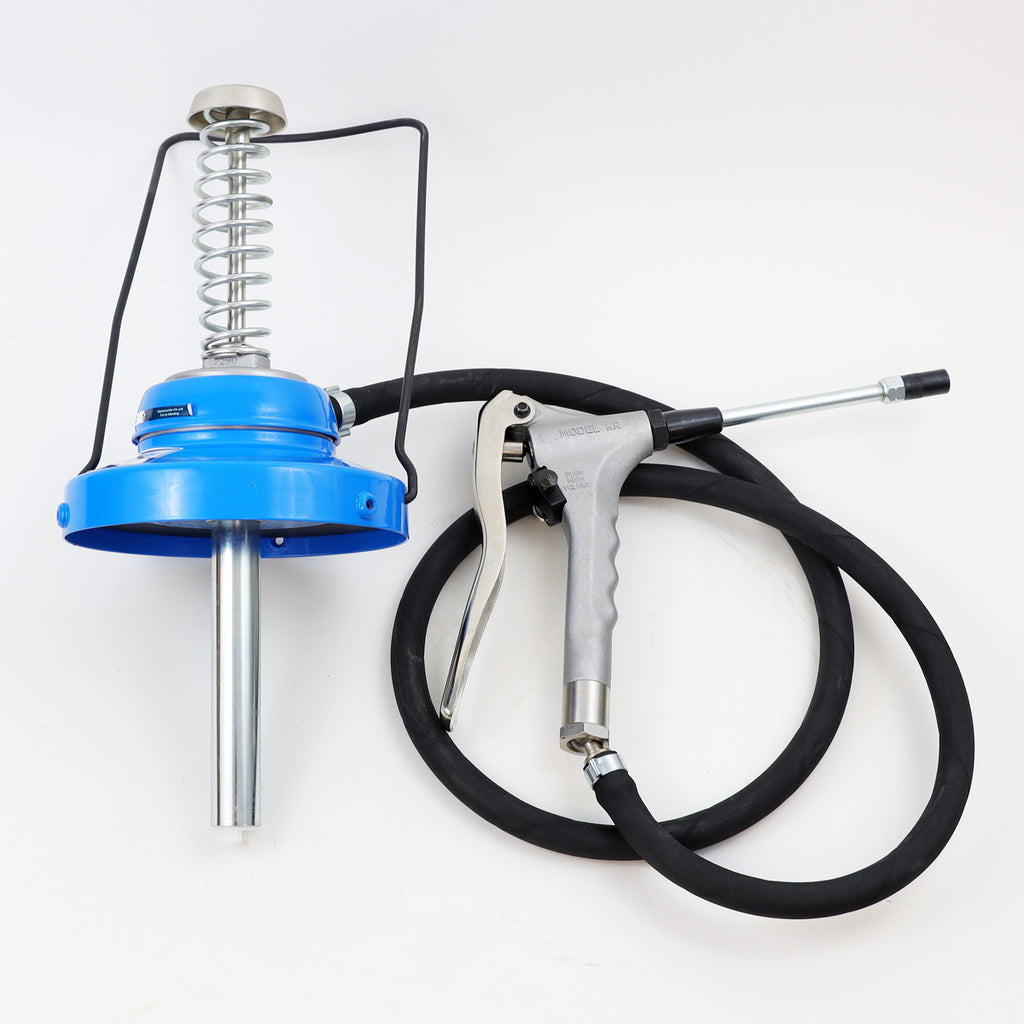

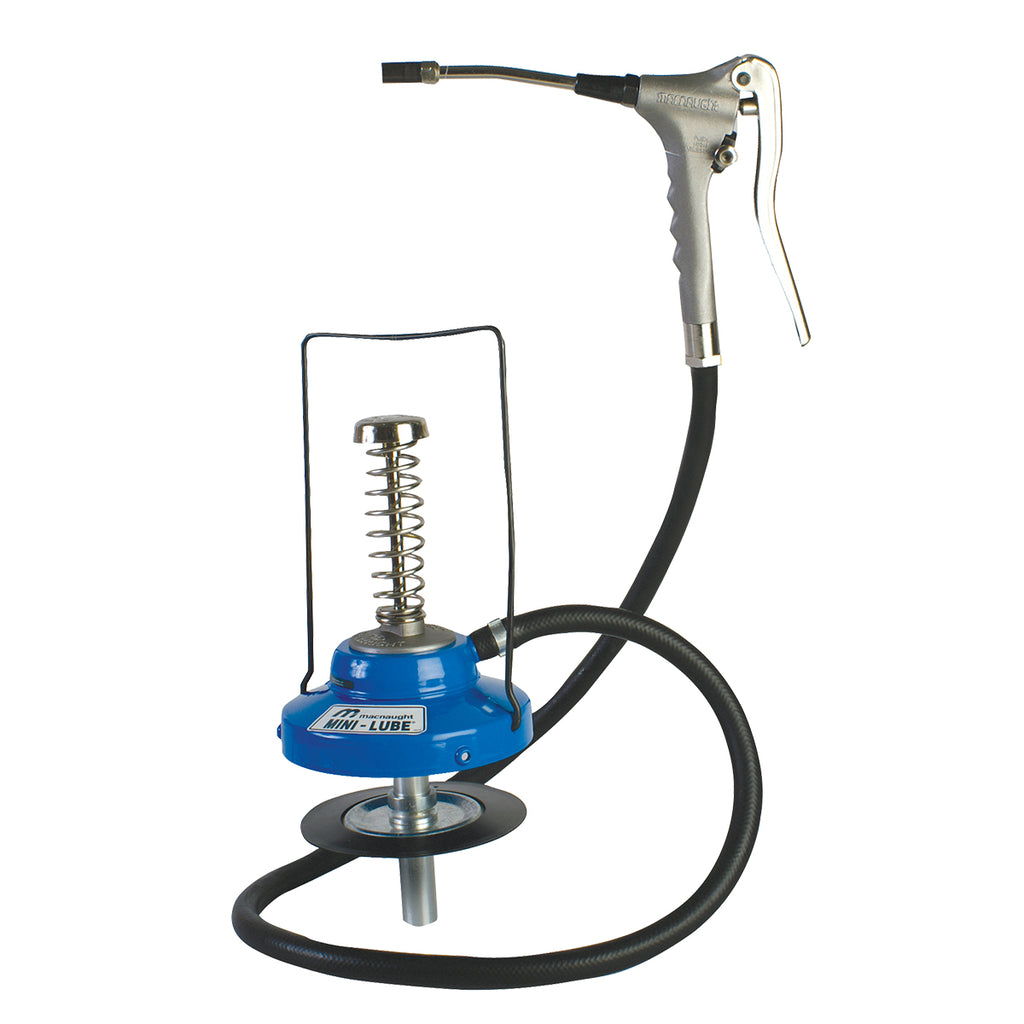

The K7 MINILUBE® Portable High-Pressure Manual Grease Pump System provides high-volume/high-pressure greasing in a compact and portable package.
It consists of two main components, a foot-operated spring-loaded pump, that dispenses grease from the container to the hose and gun and a patented high pressure/high volume KR pressurite™ gun. When the gun is set on the “high volume” position the gun will deliver up to 5,000 psi and when set on the “high pressure” setting the gun will deliver a lower volume of grease, but at higher pressures ( up to 10,000 psi).
The K7 manual grease pump is an economical alternative to the more expensive air-operated greasing systems.
Macnaught K7 Instruction Manual: PDF
Features & Benefits
Manual Greasing System
Lightweight and portable go-anywhere design
KR Pressure Gun
Choose between high pressure or high volume setting
KY SUPERGRIP™ Coupler
The positive no-leak connection ensures grease reaches the bearing
Produces up to 10,000psi (68,900kPa) of pressure
High Volume Setting
Delivers up to 1.25g grease per shot

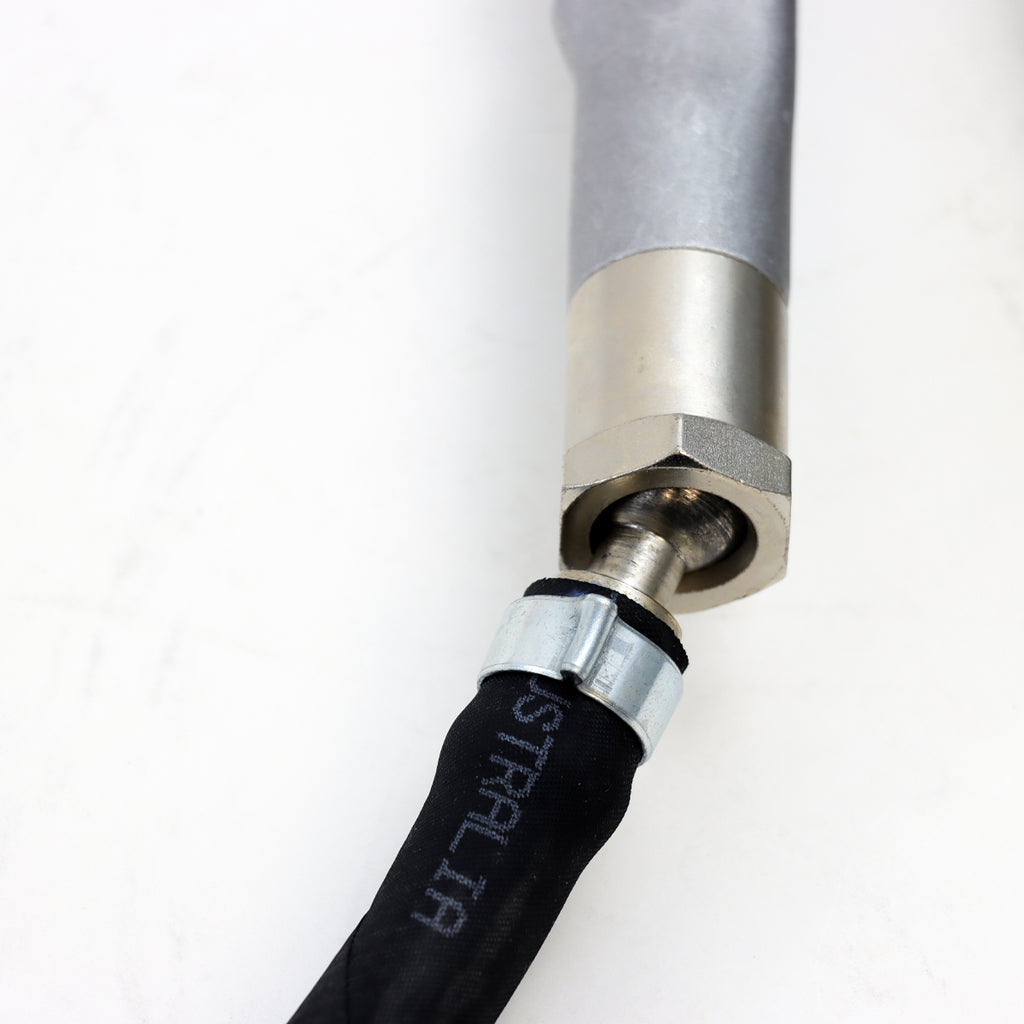

360º Ball Swivel
Prevents hose from kinking
Foot Operated Pump
Provides 30 shots per prime
Rubber-edged Follower Plate
Wipes container clean & prevents air pockets & contamination
Fits 1LB Containers
Container not included
Provides a much longer service life – includes an honest 10-year Warranty
Fully Sealed System
With inbuilt grease, strainer prevents grease contamination
5 FT Delivery Hose
Easy to reach difficult applications
