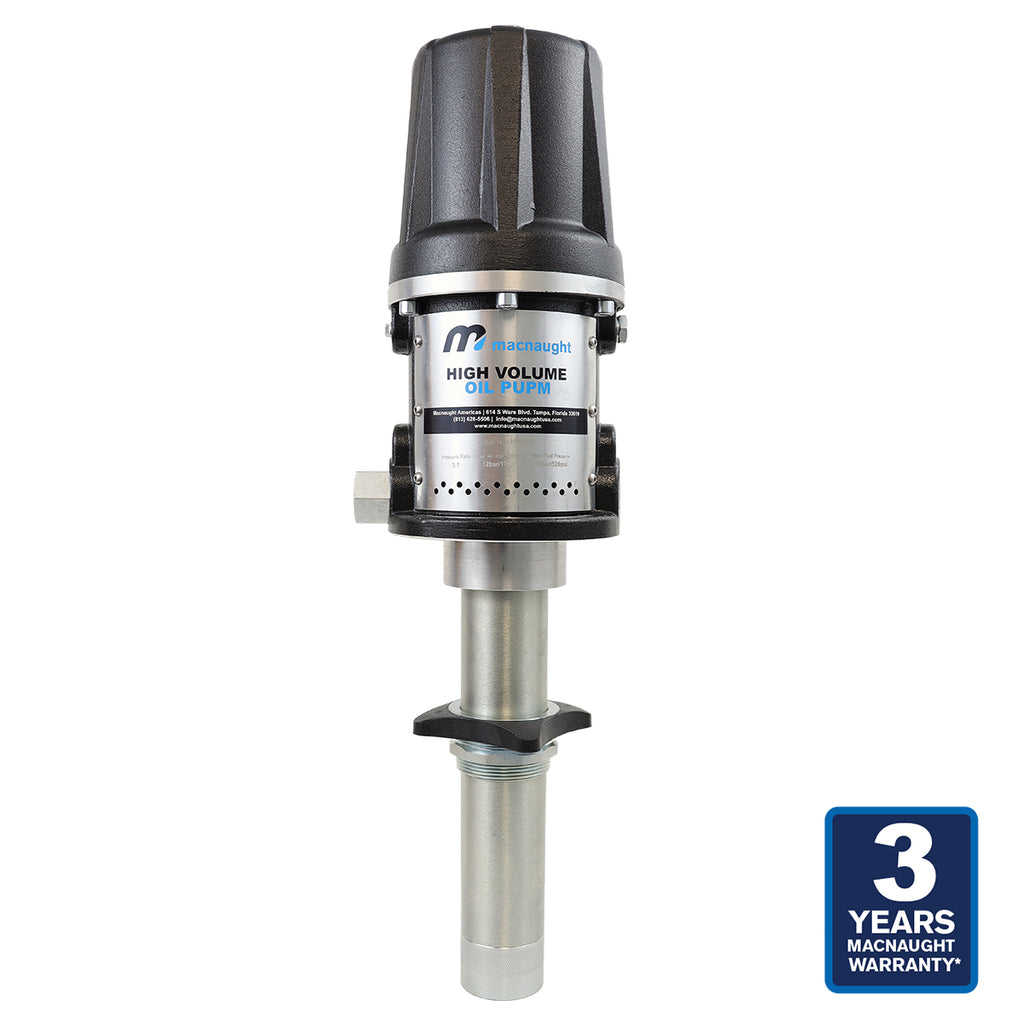

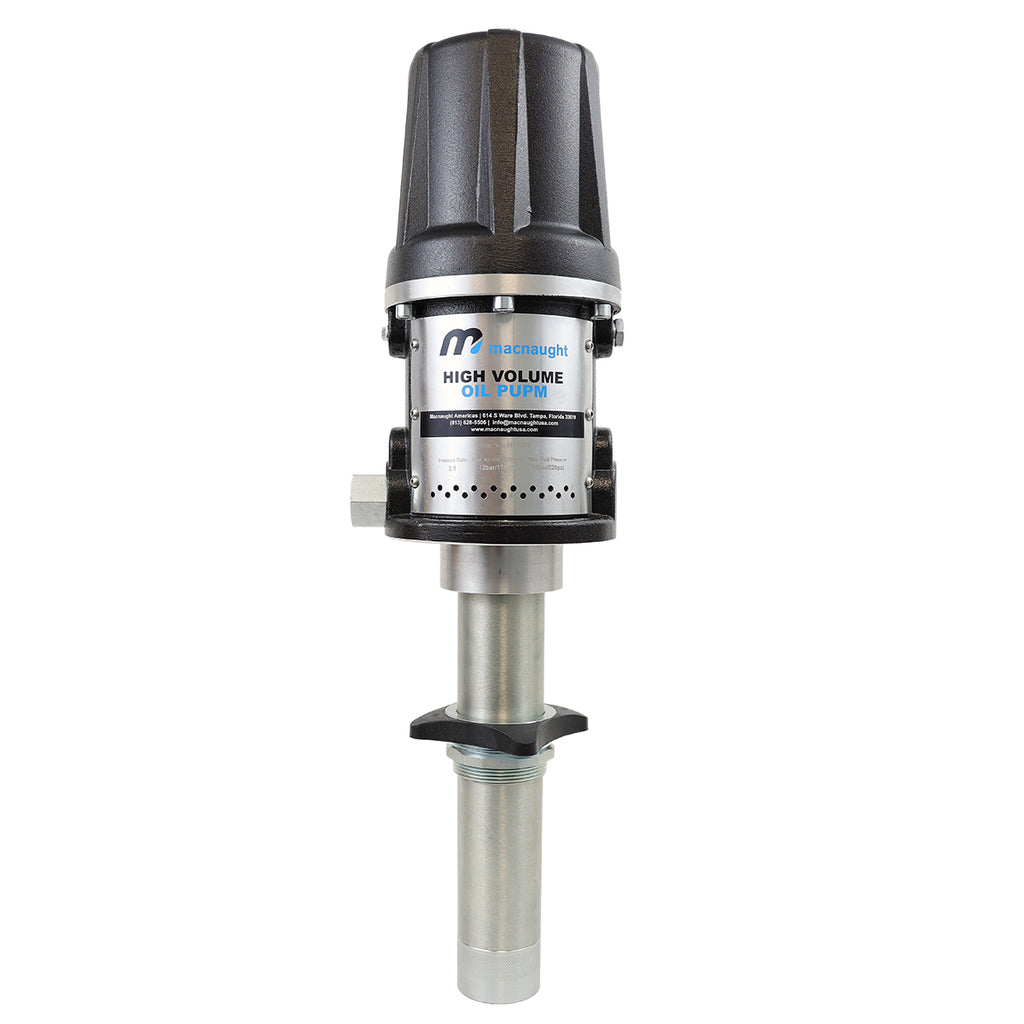

Macnaught’s HVOP3 3:1 High Volume Oil Pump was designed for high volume oil transfer with long distance capabilities. Well suited for Truck, Heavy Equipment and Large Maintenance Shop Oil Dispensing Applications.
Includes the Industries Best 3 Year Warranty!
Macnaught M3 HVOP3 Oil Pump Specifications
| Model number |
HVOP3 |
| Pump ratio |
3:1 ratio |
| Pressure |
70 – 175 PSI |
| Max Fluid Pressure |
520 PSI |
| Air Motor Diameter |
3" |
| Air Consumption |
7.6CFM @115psi |
| Free Flow |
11.9 GPM |
| Suction Tube Diameter |
2 1/8" |
| Suction Tube Length |
10 5/8" |
| Air Inlet |
¼ inch FNPT |
| Oil Outlet |

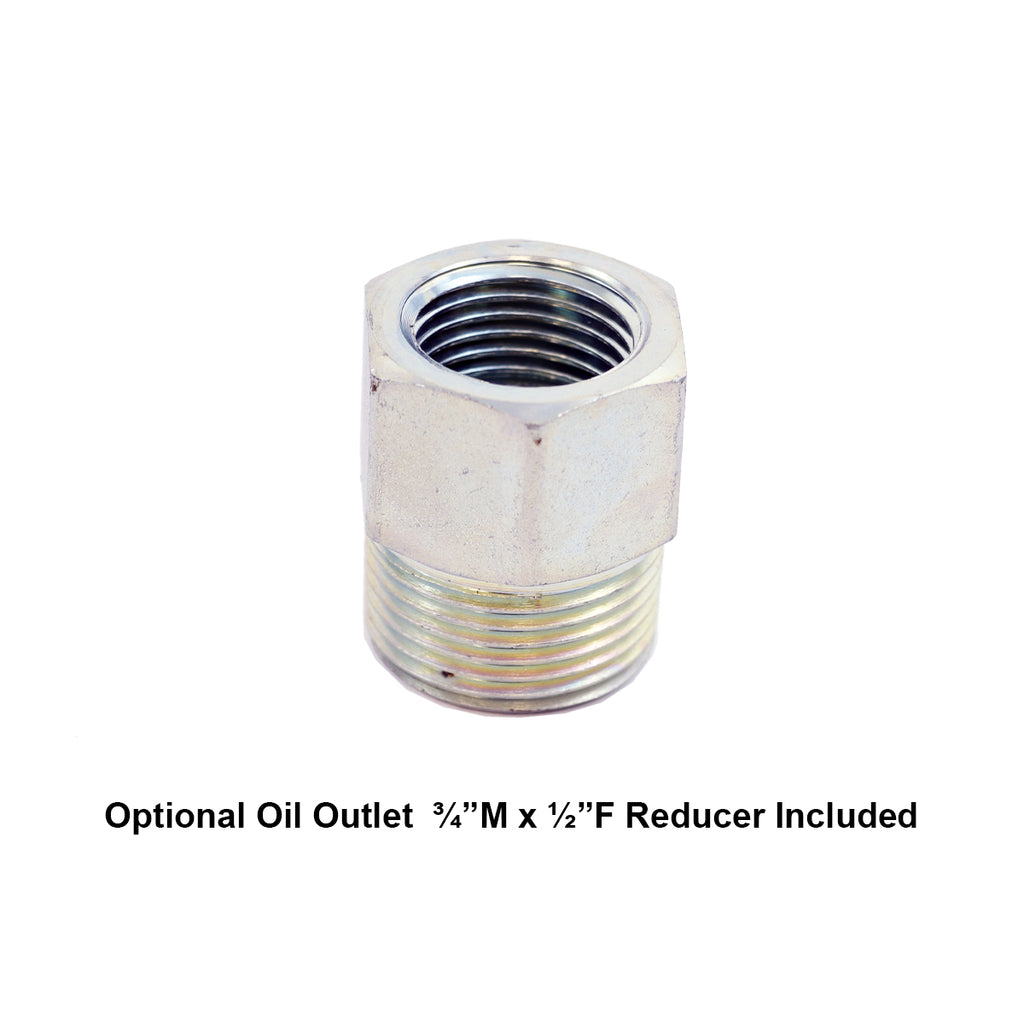

¾ inch FNPT with free ½” F Reducer provided |
| Warranty |
3 years |
Instruction Manual: PDF
Suction Tubes ( not included with above stub pump )
ST27 Suction Tube for 55 Gallon Drums 37” Total length ST27
ST37 Suction tube for 275 Gallon Totes 47” Total length ST37
