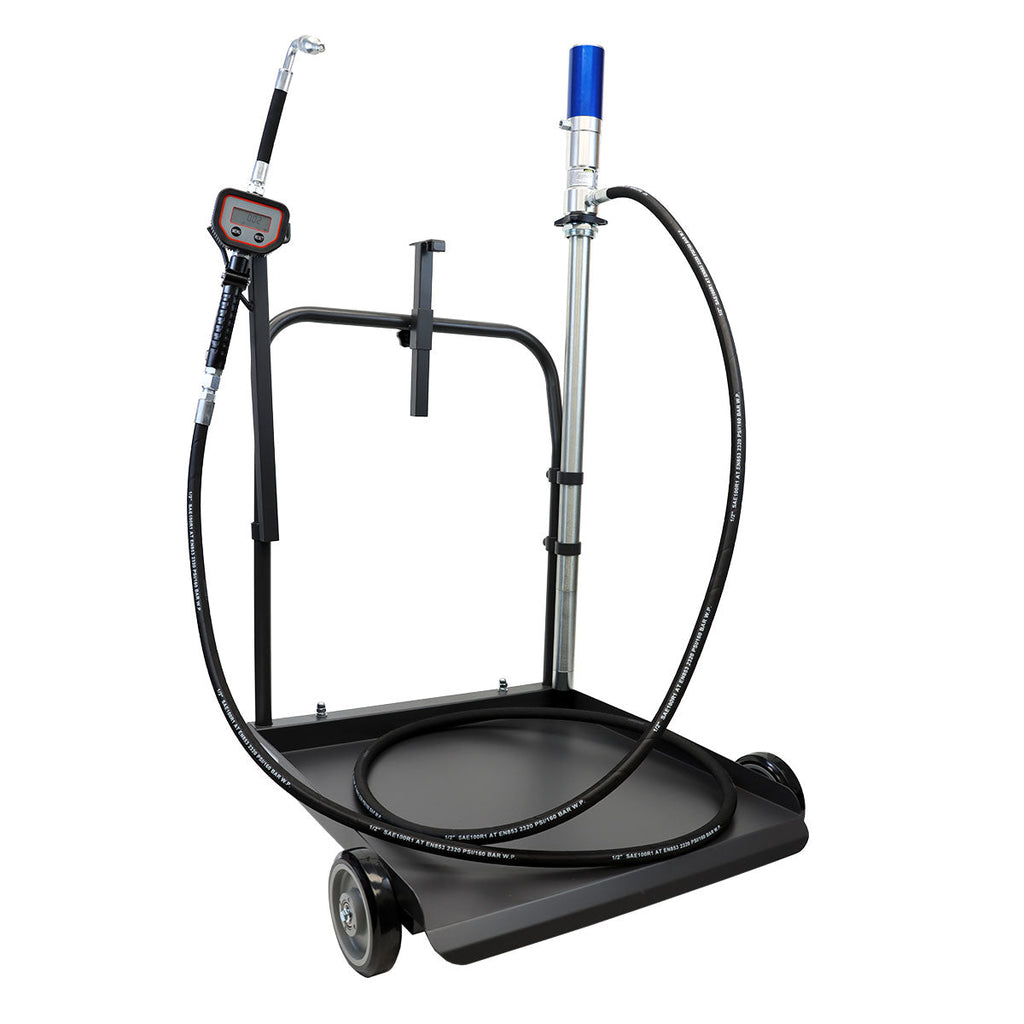

Macnaught’s 5:1 High Flow Mobile Oil Dispensing Kit is suitable for dispensing oil at medium/high viscosity for mobile installations and fixed system at medium to lengthy distances. For 48 - 58 gallon drums. Features Heavy duty air operated oil pump. Easy to use Digital Control Gun that dispenses in gallons, quarts, pints and liters. Multi-drum trolley ensures high mobility and high efficiency. Supplied with adjustable 2 in. bung adapter.

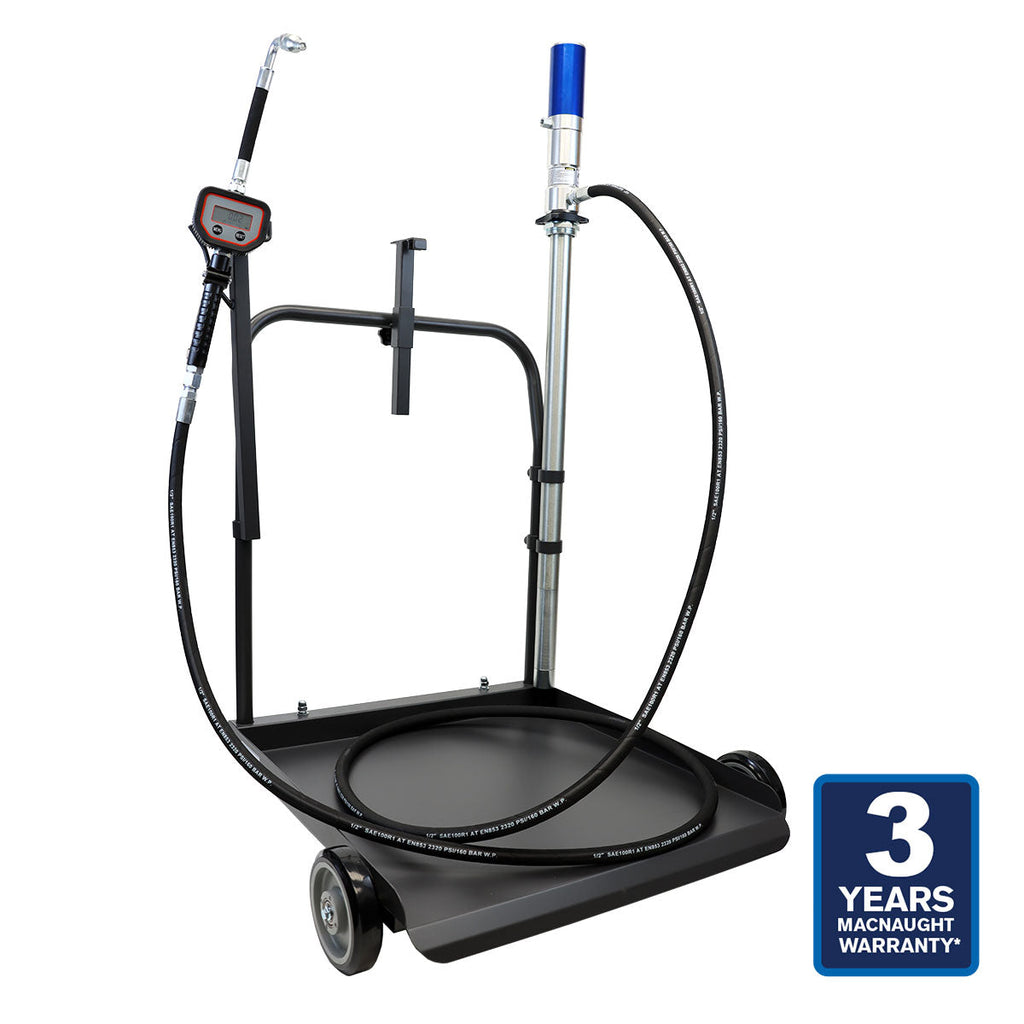

3 Year Warranty!Macnaught M3 Mobile 5:1 High Flow Oil Dispensing Kit
|PUMP SPECS||DIGITAL OIL CONTROL GUN SPECS
|Heavy Duty Rated 5:1 Oil Pump
||Registers: Quarts, Pints, Gallons, Liters
||Heavy Duty Design
|Air Inlet Operating Pressure: 30-150 PSI
||Flow Range: .3 - 9.25 GPM
||48 - 58 Gallon
|Air Motor Diameter: 2.5"
||Max Pressure: 1500 PSI
||Drum, Pump, Gun Holder Included
|Air Consumption / Min: 2.8 CFM at 150 PSI
||Measures all grades of Oils, Coolant & ATF at .5%
||Front Swivel Casters
|Max Fluid Pressure 750 PSI
||Flexible 90 degree Spout w Auto Nozzle
|Free Flow GPM: 4
||Inlet: 1/2" FNPT
|Suction Tube Diameter: 1 5/8"
|Suction Tube Length: 37"
|Adjustable 2" Bung Adapter
|Air Inlet Connection: 1/4" FNPT
|Oil Outlet Connection: 1/2" MNPT
|Hose: SAE 100R1 2320 PSI 13ft x 1/2" SS Female Swivel
Macnaught’s 5:1 Mobile Oil Dispensing Kit data sheet
Instruction Manual: PDF
Features & Benefits:
• Double Acting, Highly Efficient & Light Weight
• Suitable for all oils up to SAE 140W
• Waste Oil, Coolant and ATF compatible
• Each M3 Oil Pump comes with Suction Tube & Filter
• Adjustable 2 inch Bung Adapter
• Minimal Internal Pump Component Design
• 3 Year Warranty
- Truck and buses
- Constructions and Earthmoving
