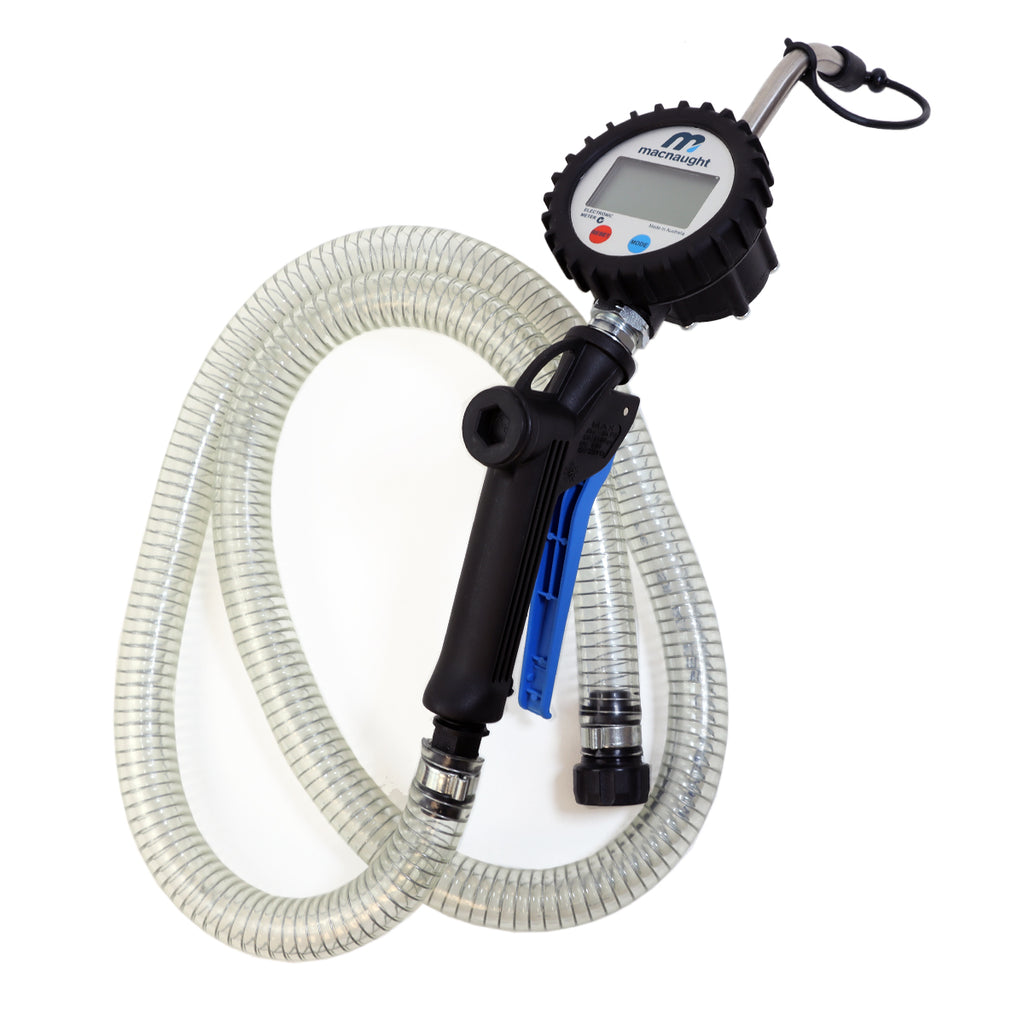

PN# BP-UMG-5FT: BOP Meter gun comes Fully Assembled with 5Ft of hose
Meter is easy to program and registers in Gallons, Quarts, Pints, Ounces, Liters, and Deciliters. Designed to work with the BOP20 and BOP60 Universal Pump, this item will connect to your BOP in seconds.
Instruction Manual: PDF
Macnaught BP-UMG-5FT Specifications
Description |
BOP Hose with Nozzle – use only with BOP Pumps |
Flow Rate |
1.5 GPM / 5.7 LPM |
Operating Temperature |
-4 °F to +158 °F |
Operating Pressure |
20psi |
Accuracy |
.5% of Reading |
IP Rating |
IP65 |
Drum size |
Use with 5-gallon ( BOP20 ) or 16 and 55 Gallon ( BOP60 ) |
Lubricant Range |
Up to 140W / ISO680 |
Delivery Rate |
Using BOP Pumps, up to 1.5+ GPM |
Hose |
Premium Clear PVC Spiral Wound Hose 3/4” ID x 5 ft long |
Warranty |
2 years |
Outlet Connection |
1/2” BSP (F) |
Fluids |
140W / ISO680 oils, Coolant & ATF |
Power |
1 x Cr2450 3V Lithium Coin Battery |
Macnaught BP-UMG-5FT Features and Benefits
- Assembly includes 5ft of 3/4” Spiral Wound Hose
- On Demand Nozzle
- Meter included

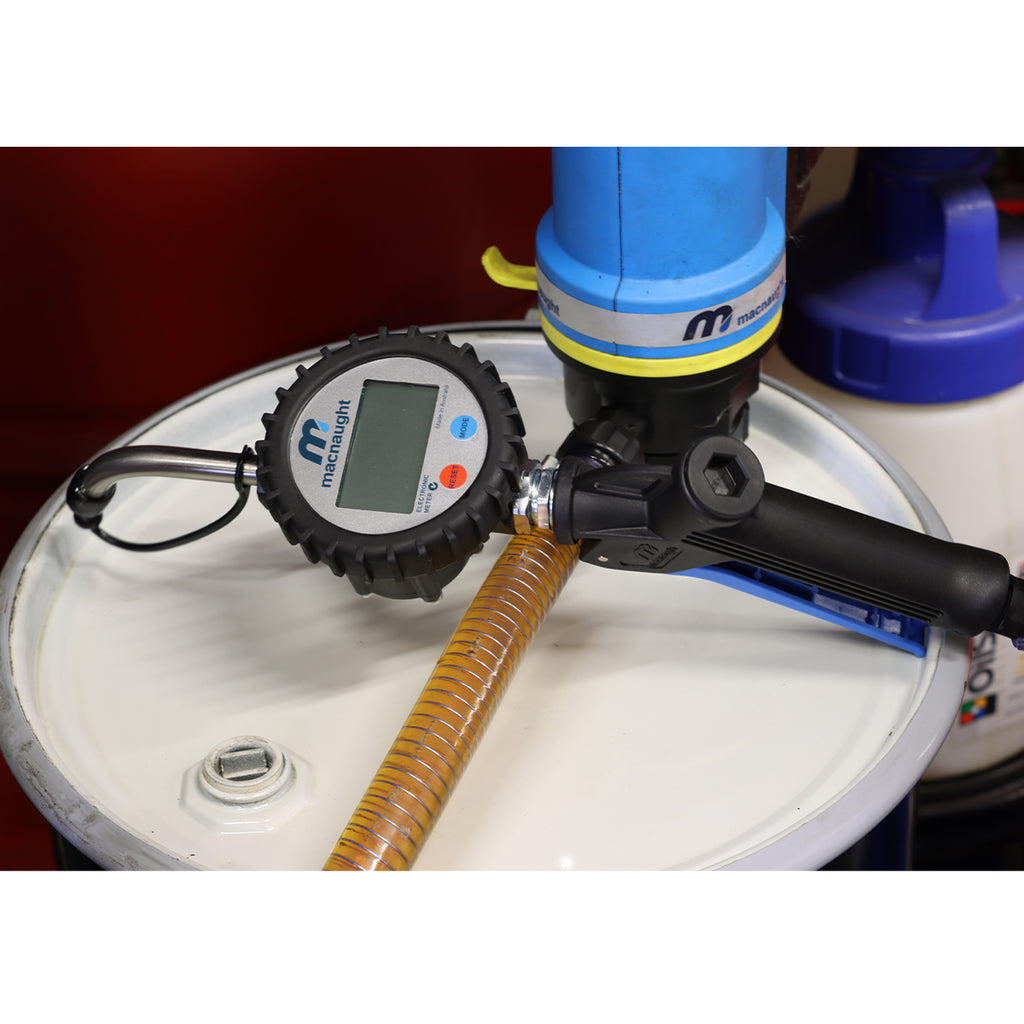

- Assembly installs in seconds; simply screw onto the pump discharge
- Back Light Function
- Four Digit Display
- Resettable batch total
- Resettable accumulative total
- Non-resettable accumulative total
- Metric and Imperial Units
- Quarts / Pints / Ounces / Gallons / Liters / Deciliters
