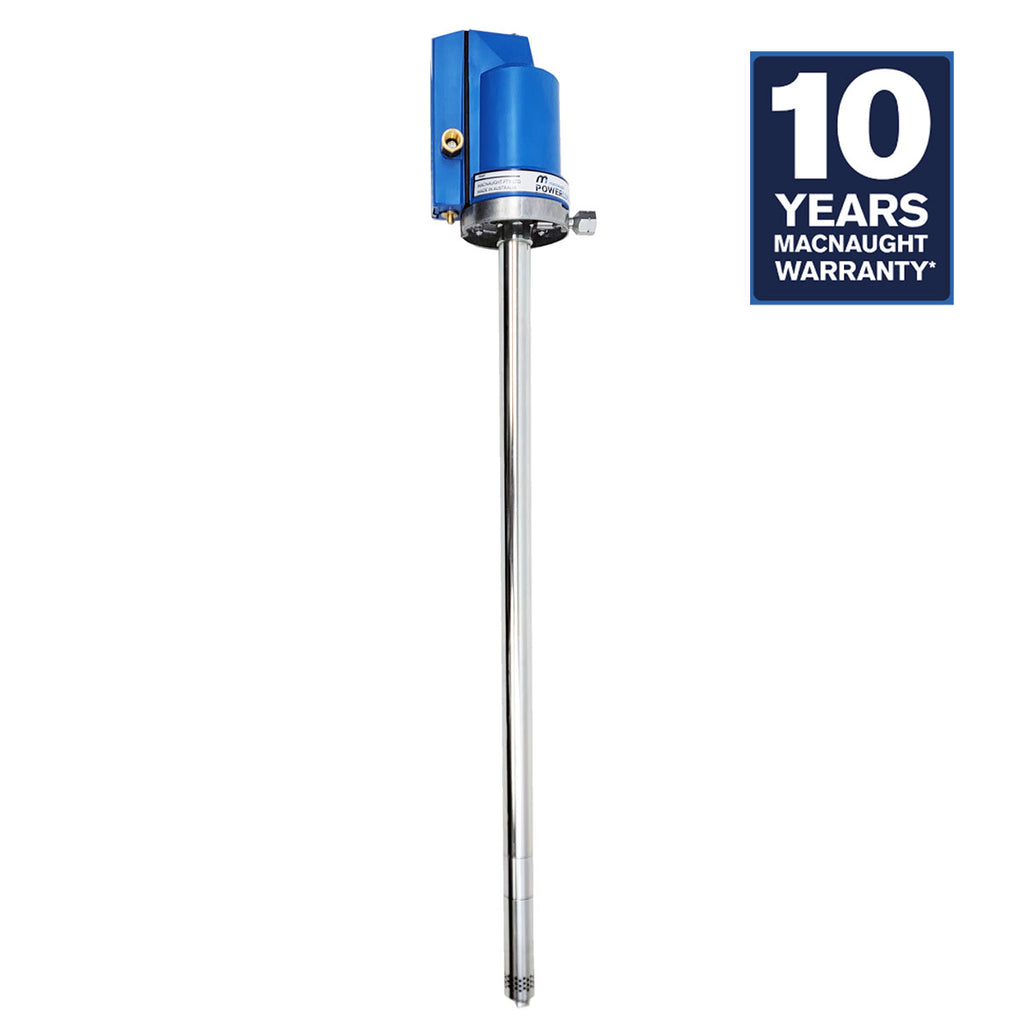

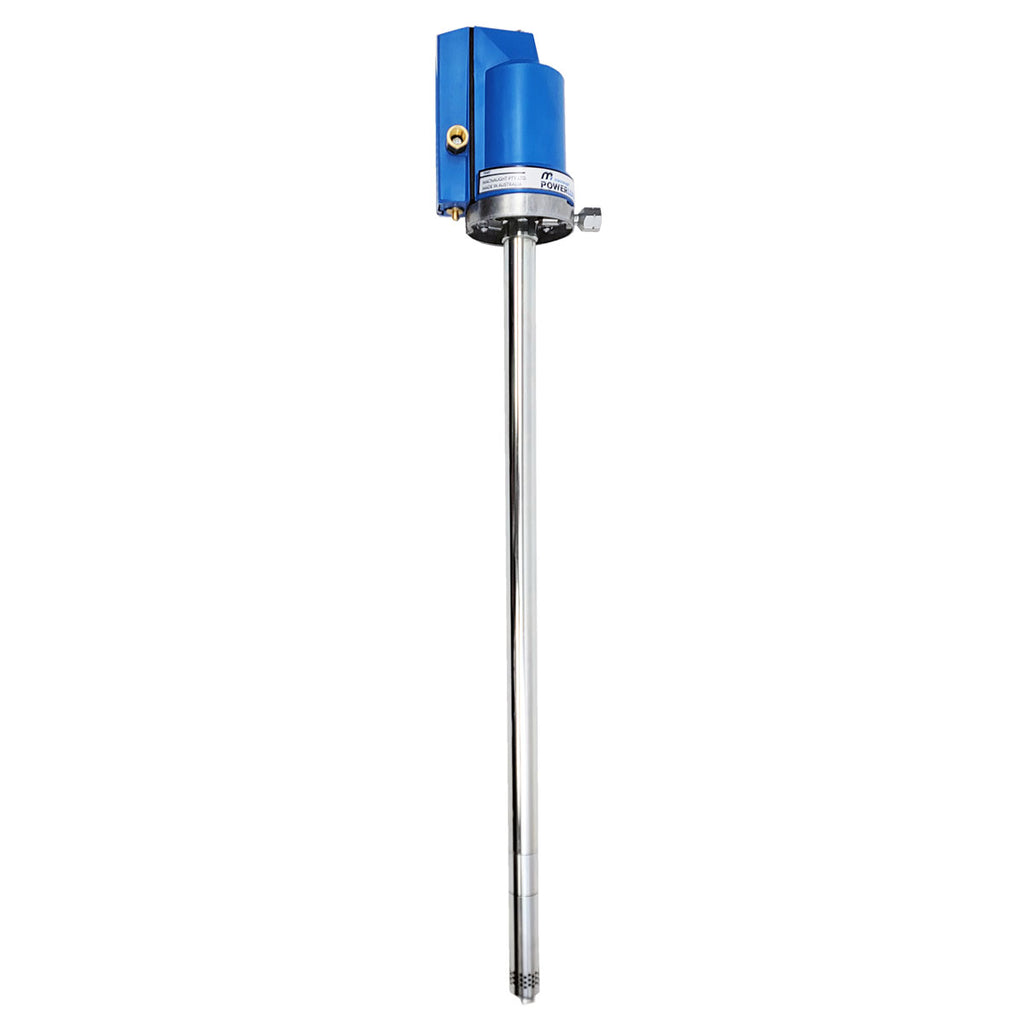

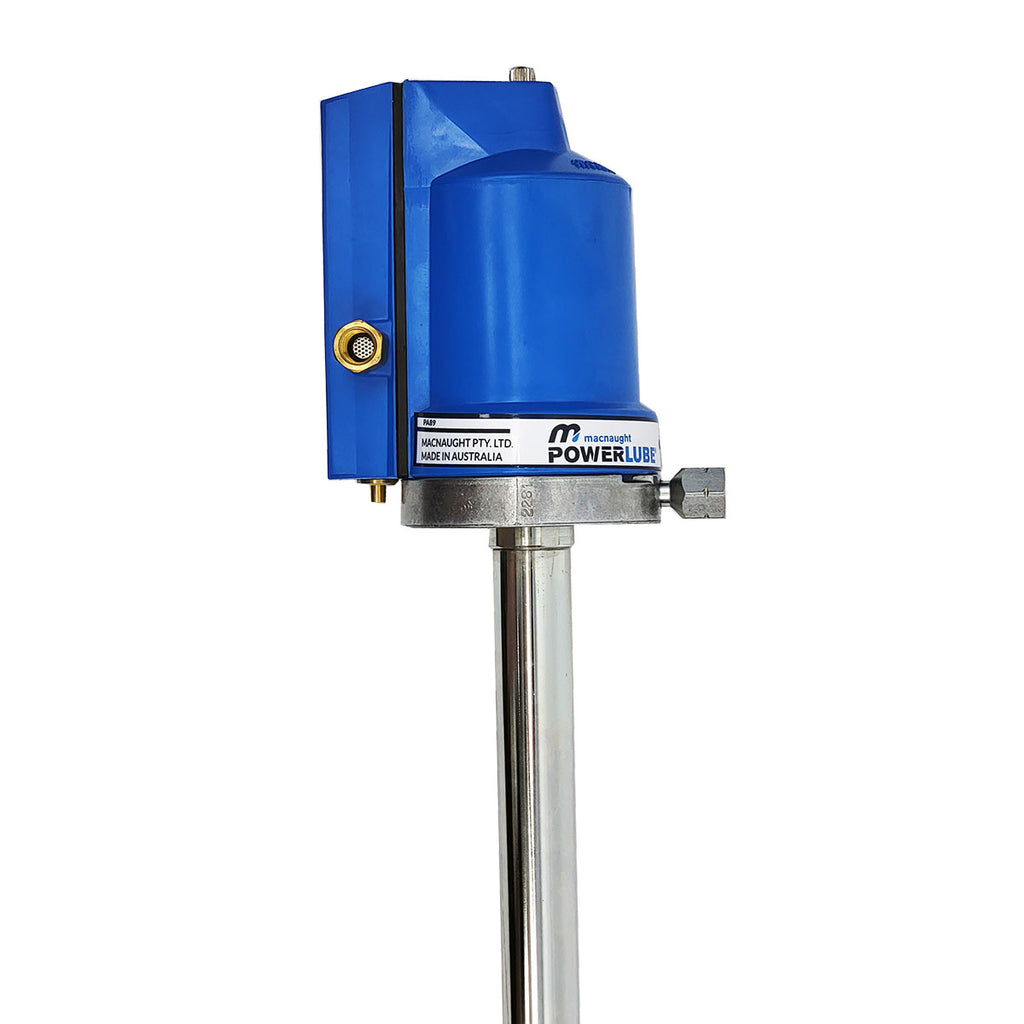

Engineered for 120 lb./16 Gal. containers. Our Pneumatic Grease pumps have low air consumption motor & don’t need to be lubricated due to the use of modern polymer materials. Quiet air motor design – Meets all industry noise level standards. 50:1 ratio air motor delivers up to 16 oz/min of fast, efficient grease output. Users will save on power and avoid the oily mist and mess typically associated with air-operated equipment.
Zinc components – For underground mining applications. Fully repairable – Provides a longer service life. Rubber-edged follower plate – Prevents air pockets and contamination. Macnaught air powered grease pumps are suitable for heavy-duty applications and comes with the industry’s leading 10-year warranty.
Macnaught P6-TR Specifications
| Model number |
P6003 – maxilube® |
| Pump ratio |
50:1 Ratio |
| Max pump output pressure |
7,500 psi / 517BAR |
| Suited to containers |
120lb / 55kg |
| Airline Lubricator |
Not required |
| Fully serviceable |
✔ |
| Warranty |
10 years |
| Parts guarantee |
10 years |
| Grease viscosity |
Up to NLGI No.2 |
| Wetted components |
Zinc, Hard Chrome-plated Carbon Steel, Brass, Nitrile and Polyurethane Rubber |
| Max air pressure |
150 psi |
| Min air pressure |
60 psi |
| Air inlet |
1/4″ NPT (F) |
| Pump Outlet |
1/4″ NPT (F) |
| Min compressor size |
3 cfm (0.08m³/ min) |
Macnaught P6003 Data Sheet: PDF
Macnaught P3-P6-P8 Air Operated Grease Pumps Instruction Manual: PDF
Macnaught P6003 Features and Benefits
- Industry Leading 10-year Warranty
- Zinc components – For underground mining applications
- 50:1 ratio air motor delivers up to 16 oz/min of fast, efficient grease output
- Non-corroding air motor design – No airline lubricator required. Easy and low cost to repair
- Quiet air motor design – Meets all industry noise level standards
- Fully sealed greasing system with built-in grease strainer – Clean grease delivery every time
- Fully repairable – Provides a longer service life
