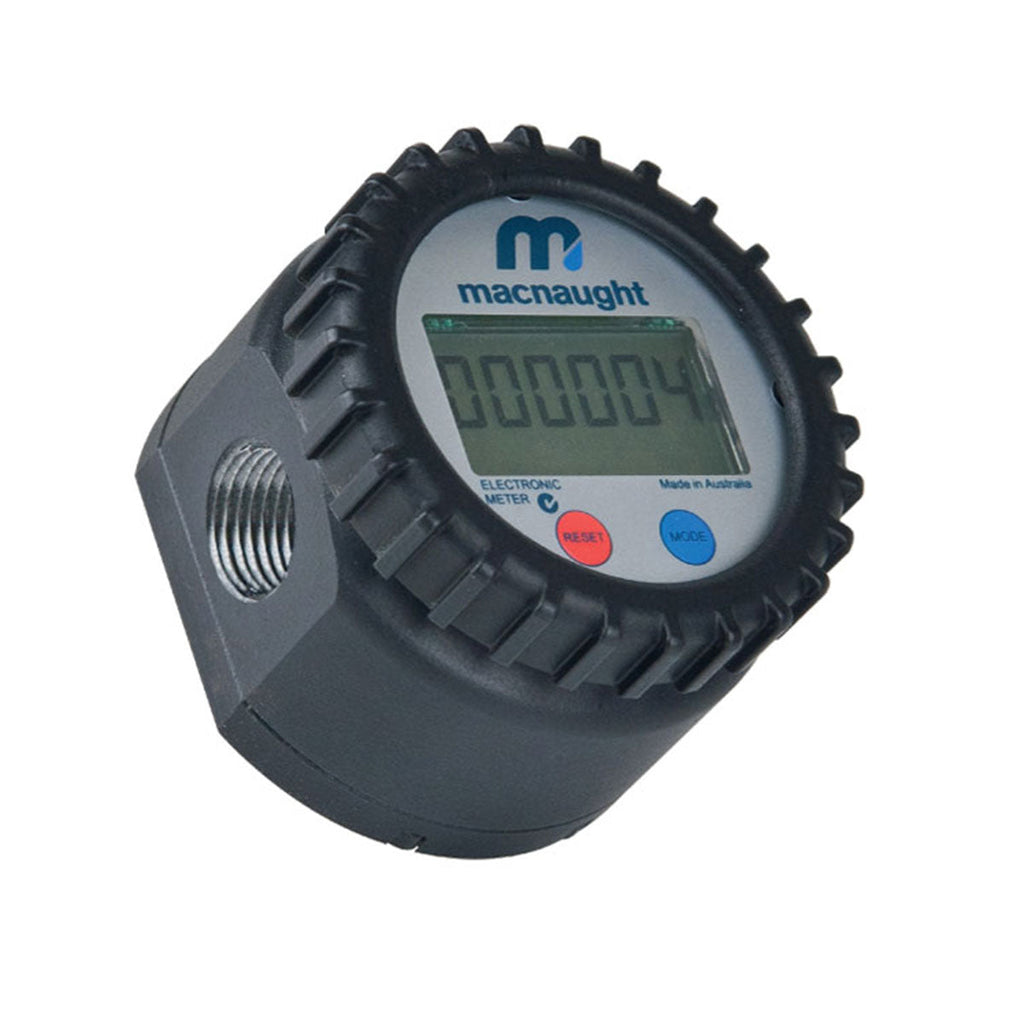

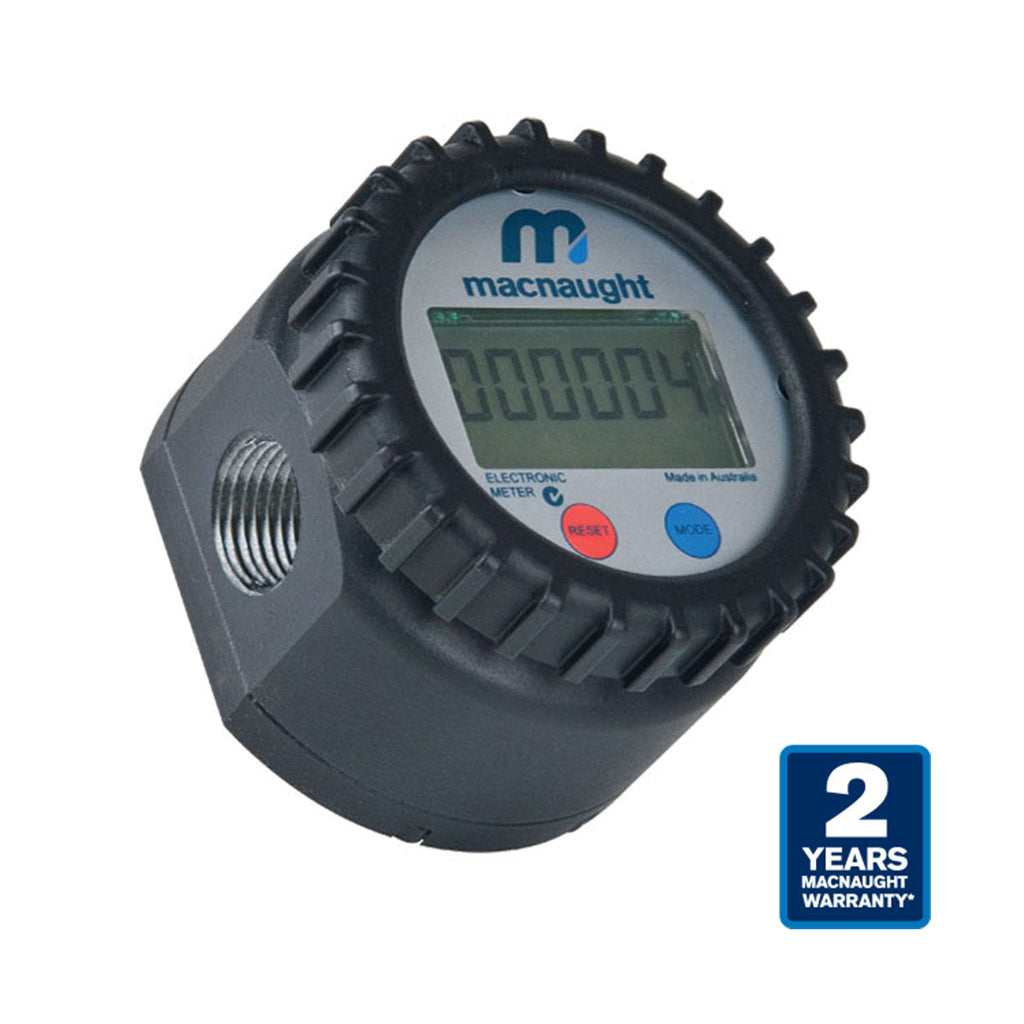

In-line Oval Gear Oil Flow Meter
Macnaught offers the IM019E-02 in-line oval gear digital register with accuracy of +/- 0.5%. The meter has a easy to read display with both batch and cumulative totals. The 3/4 inch NPT ports and a working pressure of up to 1,000 psi combine to allow for flow rates of up to 21 gallons a minute. Used for in-line oil monitoring applications or can be added to a non-metered oil guns. Compatible with oil, ATF, hydraulic fluid, diesel, kerosene and antifreeze up to a maximum viscosity of SAE 140. All Macnaught in-line meters come with a fully supported 2-Year Warranty!
INCLUDES 2 YEAR WARRANTY!
Features & Benefits:
- In-line oval gear technology
- Economic and accurate fluid measurements
- Digital LC display
- Six digit resettable batch and non-resettable cumulative totals
- Flow rate up to 21 gallons per minute with up to SAE140 viscosity
- Compatible with oil, ATF, hydraulic fluid, diesel, kerosene and antifreeze
- Economic, accurate and reliable electronic flow meter
|Flow range||0.8-21gal(3 - 80L)/min|
|Meter / register||Oval gear / Digital|
|Accuracy (flow rate)||+/- 0.5% (lube oils)|
|Features||6-digit digital display resettable and non resettable totals flow rate mode|
|Inlet port||3/4" NPT (F)|
|Outlet port||3/4" NPT (F)|
|Parts guarantee²||10 years|
|Compatible fluids||Oils up to SAE140, automatic trans fluid, engine oil, gear oil, hydraulic oil. coolant, diesel, keroene|
Macnaught In-line oil meter data sheet: PDF
Instruction Manual: PDF
