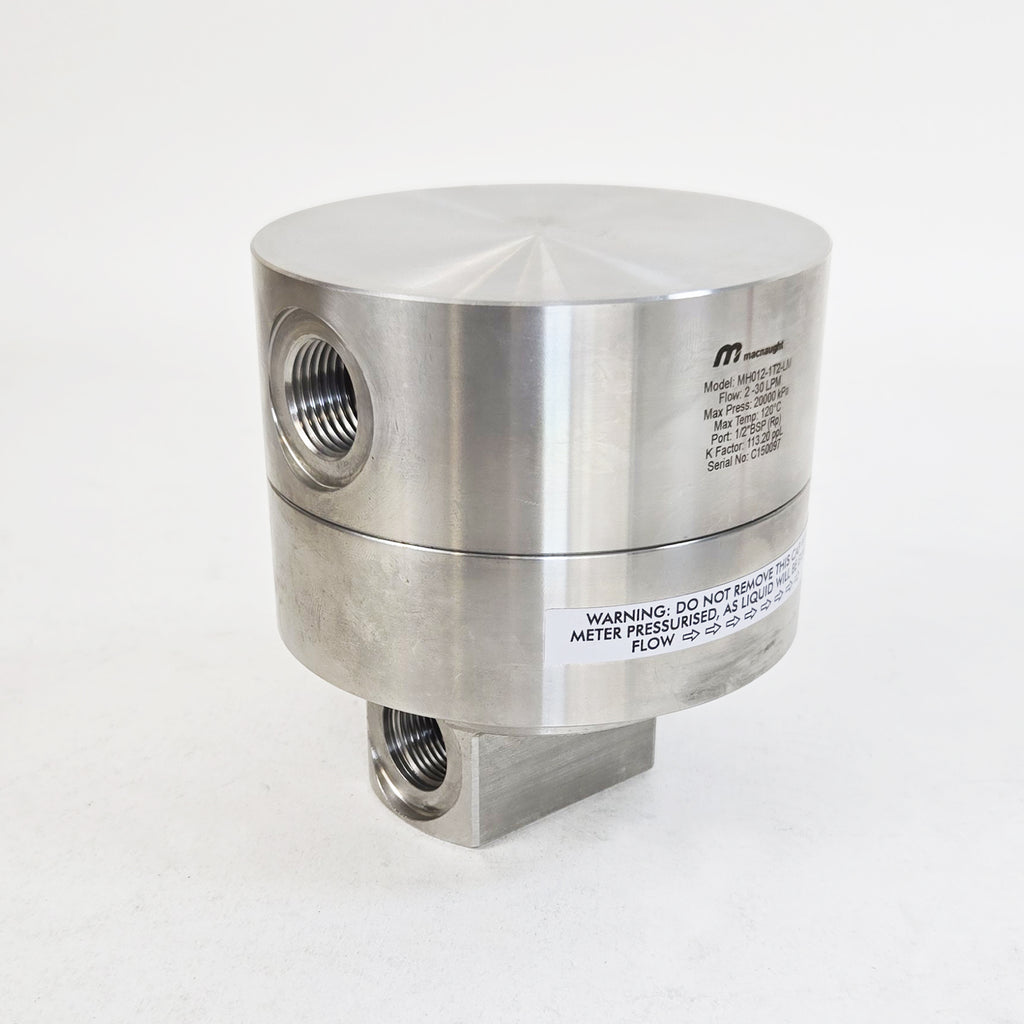

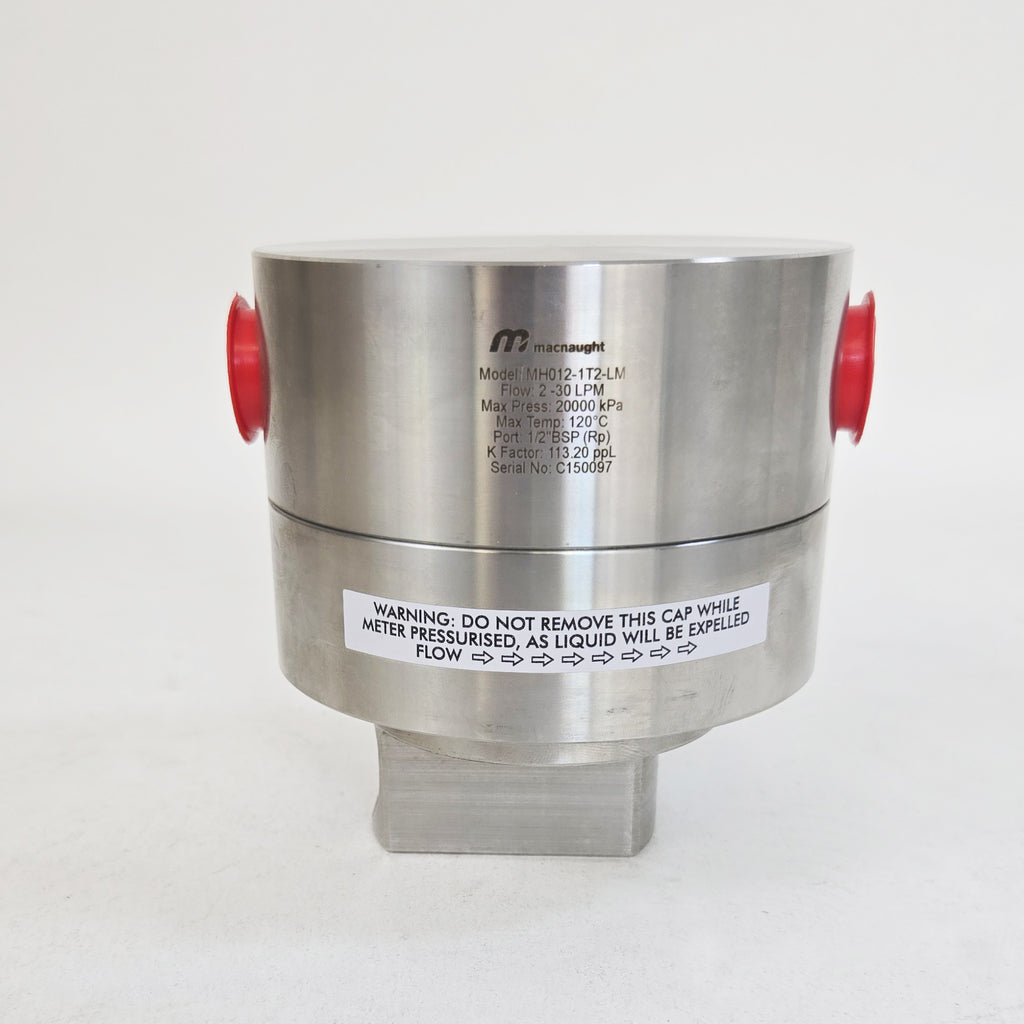

1/2" Stainless Steel Flow Meter – High Pressure, 0.5–8 GPM, Pulse Output
Engineered for precision and durability, this 1/2" flow meter delivers accurate measurement in high-pressure fluid systems. Built with 316 stainless steel construction, it is ideal for demanding industrial applications requiring reliability and long service life.
🔧 Key Features
-
High Accuracy – ±0.5% of flow for precise measurement
-
Wide Flow Range – Measures 0.5 to 8 GPM
-
Heavy-Duty Construction – 316 stainless steel for corrosion resistance
-
High Pressure Rating – Handles up to 3,000 PSI
-
REED Switch Pulse Output – Easy integration with monitoring systems
-
No Flow Conditioning Required – Simplifies installation
⚙️ Specifications
-
Connection: 1/2" BSP Thread
-
Flow Range: 0.5 – 8 GPM
-
Accuracy: ±0.5% of flow
-
Max Pressure: 3,000 PSI
-
Material: 316 Stainless Steel
-
Seal: Teflon
-
Output: REED Switch Pulse
✅ Ideal Applications
- Oil and fuel systems
- Chemical and industrial fluid handling
- High-pressure transfer systems
- Process control and monitoring
