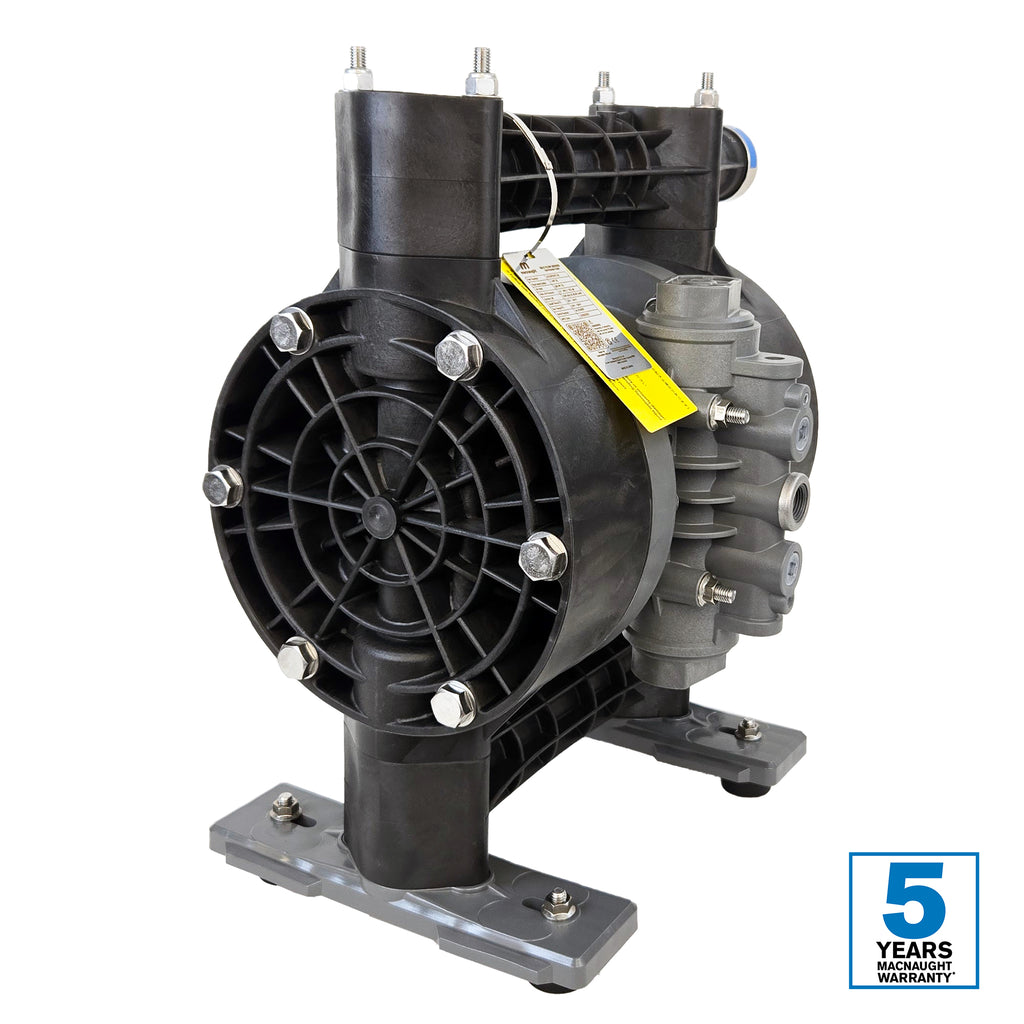

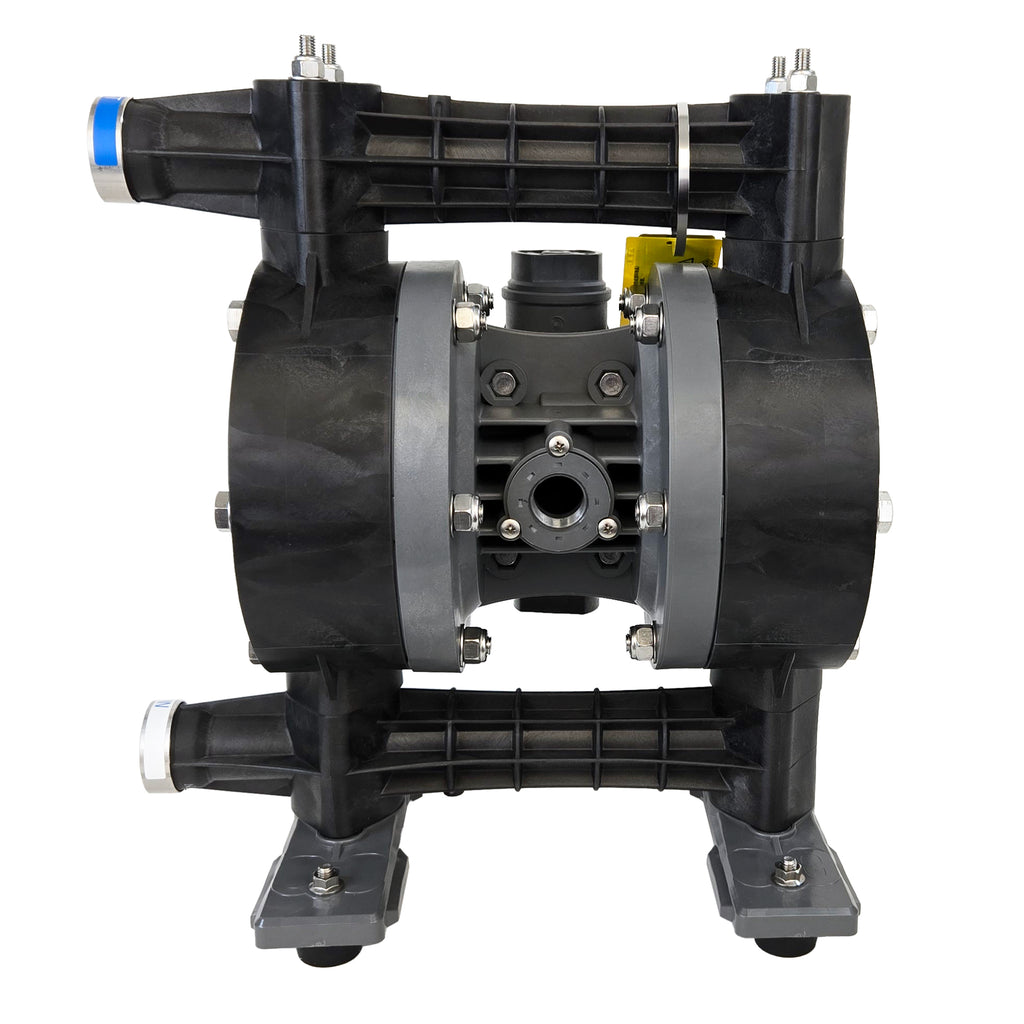

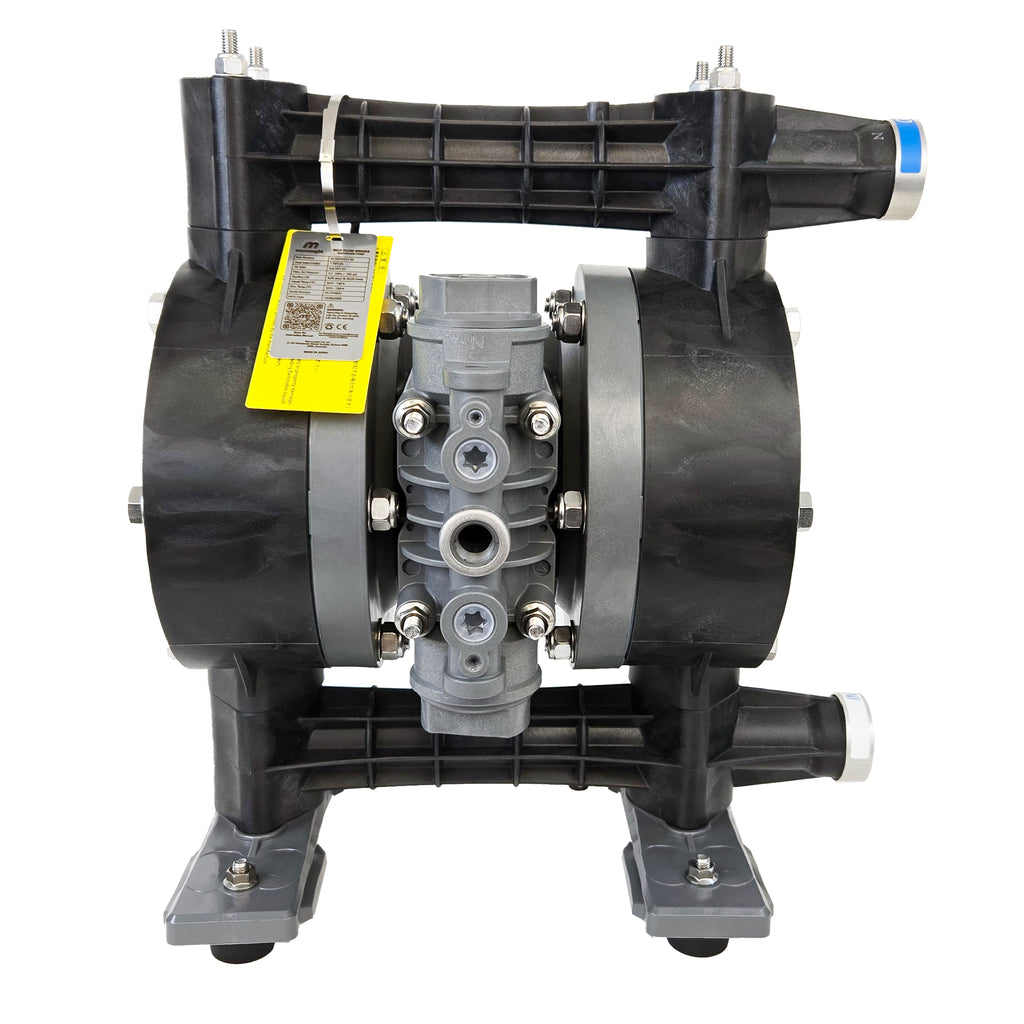

Experience the next level of efficient chemical fluid transfer with our Max Flow Double Diaphragm Pump Series. Designed and manufactured in Japan, the Macnaught Max Flow range delivers industrial-grade chemical process pumping solutions. This 1” Air Operated Double Diaphragm Pump operates at a 1:1 ratio with a maximum flow rate of 47 GPM, ensuring high-volume output with low air consumption. Includes a 5-Year Pump Body Warranty. PVDF Body and Teflon Diaphragms ensure compatibility with a range of harsh chemistries.

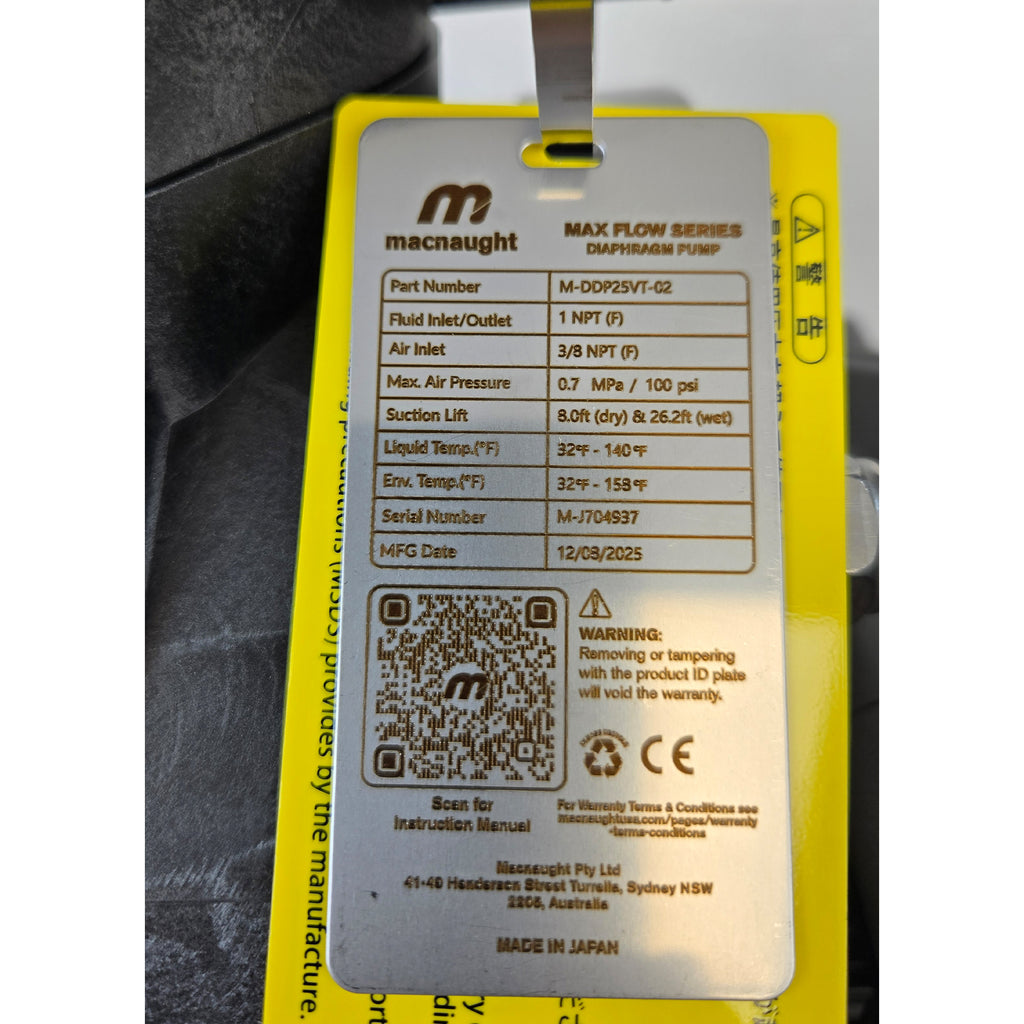

M-DDP25VT-02
Parameter
Specification
Max Flow Rate
47 GPM

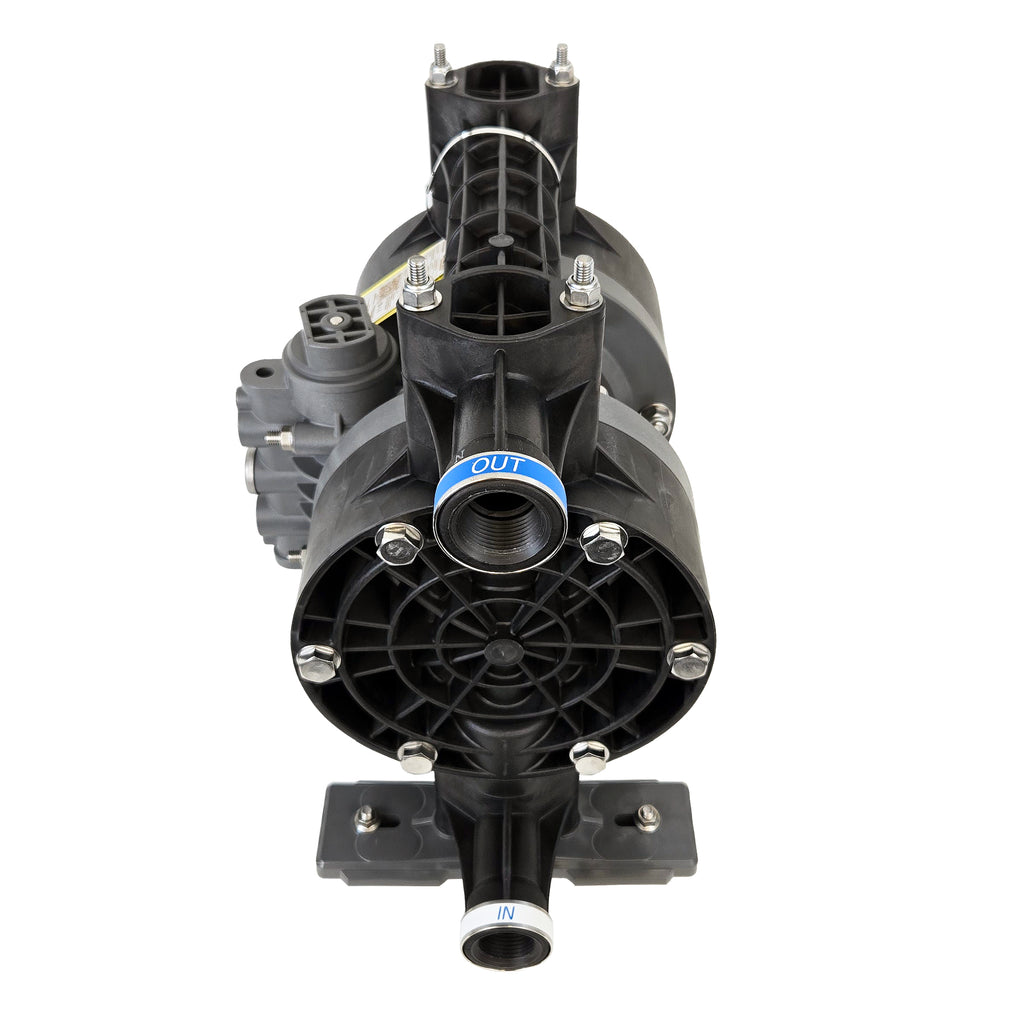

Fluid Inlet/Outlet
1" NPT (F)
Air Inlet
3/8" NPT (F)
Operating Air Pressure
30 / 100 PSI
Max Solid Size
.12 inch or less
Suction Lift
8ft (dry) & 26.2ft (wet)
Liquid Temp (°F)
32°F – 140°F
Noise Level (ISO 1996)
86 dB
Diaphragm
PTFE
Casing
CFPVDF
FEATURES
Included Air Supply Ball Valve, Teflon Tape and Exhaust Muffler
The PVDF Body and Teflon Diaphragm MOC pumps a wide range of Acids, Caustics, Solvents, and other aggressive chemistries. Consult our chemical compatibility guide.
