How Air Operated Diaphragm Pump Work : A Complete Guide | Macnaught USA
Air Operated Double Diaphragm (AODD) pumps are extensively useful and reliable, used in a variety of industries. It is used in the chemical processing, food and beverage sector.How accurately do these pumps work? In this article, we'll discuss the parts of AODD pumps, how they work, and why they're the best choice for fluid handling applications
What is an Air Operated Double Diaphragm Pump?
An Air-Operated Double Diaphragm (AODD) pump is a positive displacement pump powered by compressed air. It has two flexible diaphragm Pumps   that move back and forth to create a reliable pumping action.

AODD pumps are well suited for handling viscous, abrasive or shear-sensitive fluids, making them ideal for challenging industrial applications.

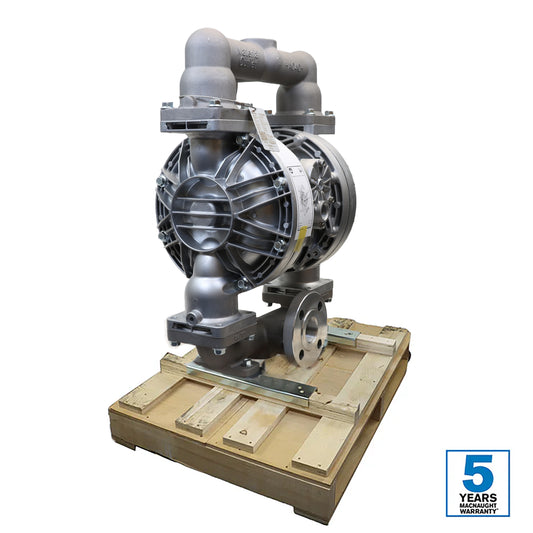

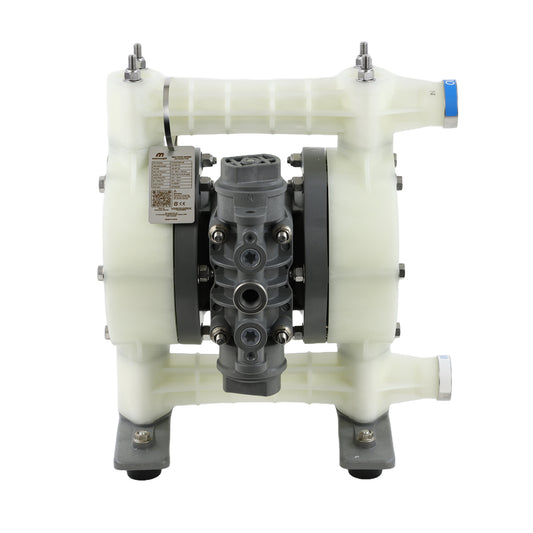

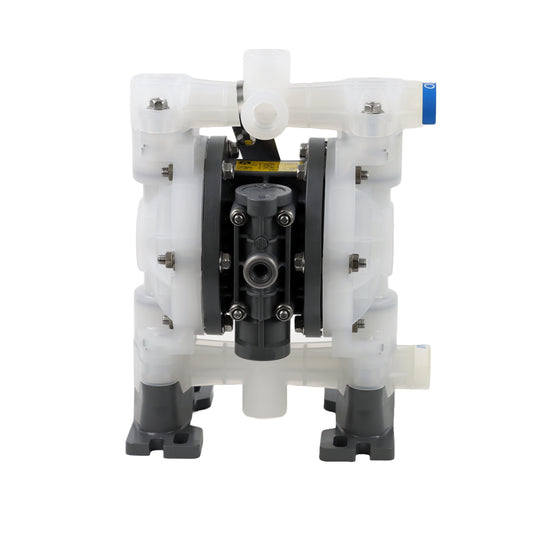

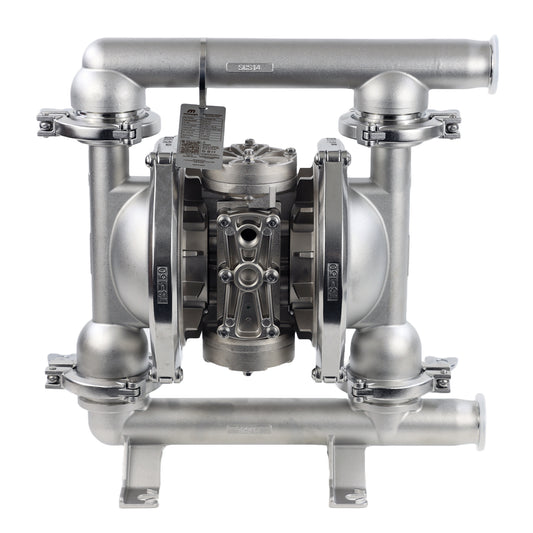

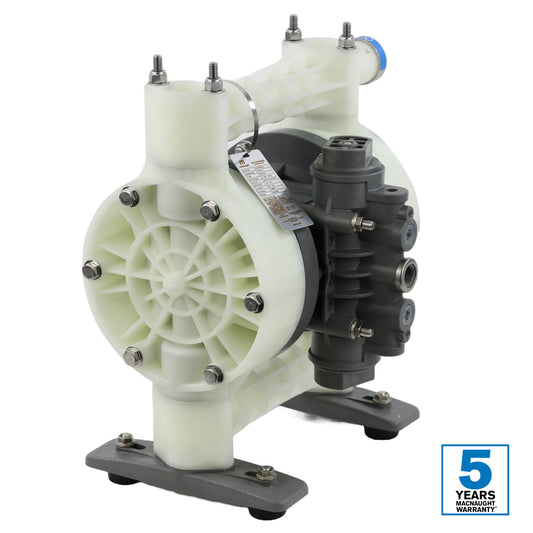

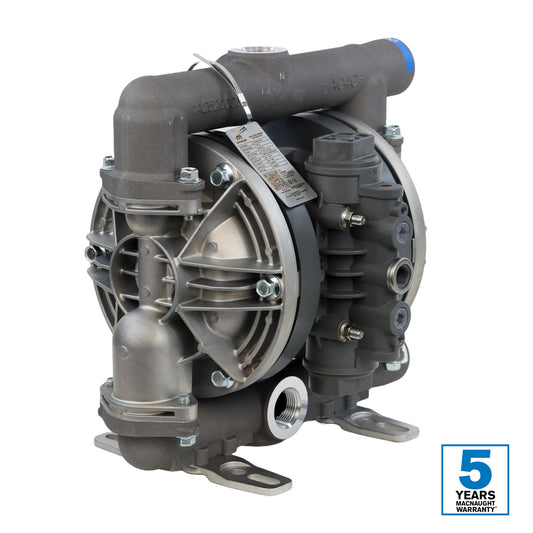

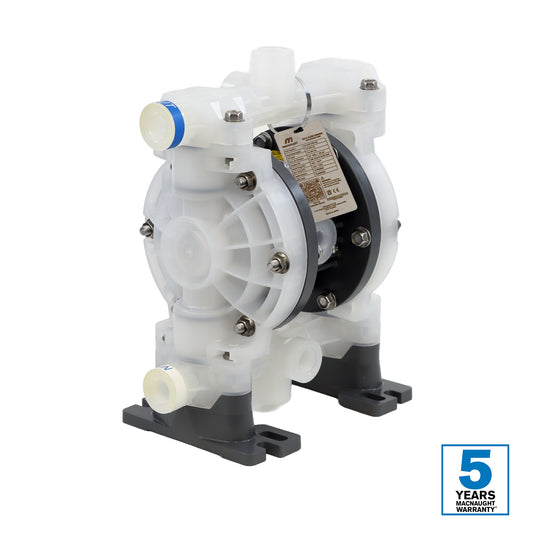

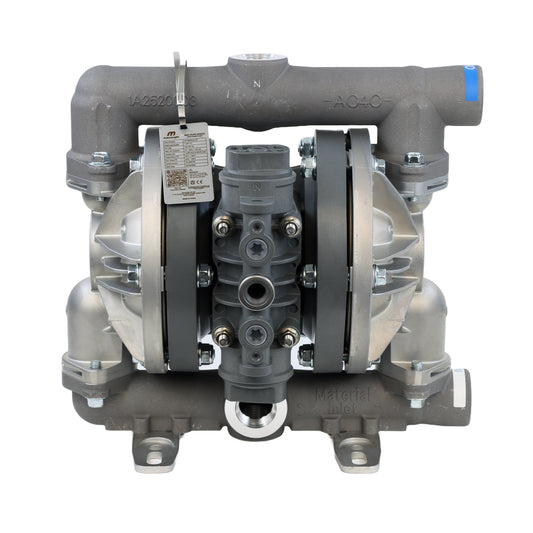

Air Operated Double Diaphragm Pump

Key Components of an AODD Pump

  • Two flexible membranes that move in unison are called diaphragms
  • Compressed air is directed to the diaphragms' opposing sides via an air valve
  • Verify the one-way fluid movement and prevent backflow by checking the valves
  • Pump chambers are used to pull in and release fluid

How Macnaught AODD Pump Works

The four-stage cycle that powers the Macnaught’s AODD Pump:-
  1.  Air Inlet Activation: Compressed air is received by the air valve, which directs it to one of the diaphragms
  2. Movement of the Diaphragm - Through a connecting shaft, the air pressure pulls the opposing diaphragm inward while pushing the first diaphragm outward
  3. The Suction Phase - Through the intake check valve, fluid is drawn into the pump chamber by the vacuum created when one diaphragm retracts
  4. Phase of Discharge - Via the output check valve, the opposing diaphragm forces fluid out of the other chamber. Rapid repetition of this cycle makes continuous and effective fluid transfer possible

Diaphragm Pump Key Features

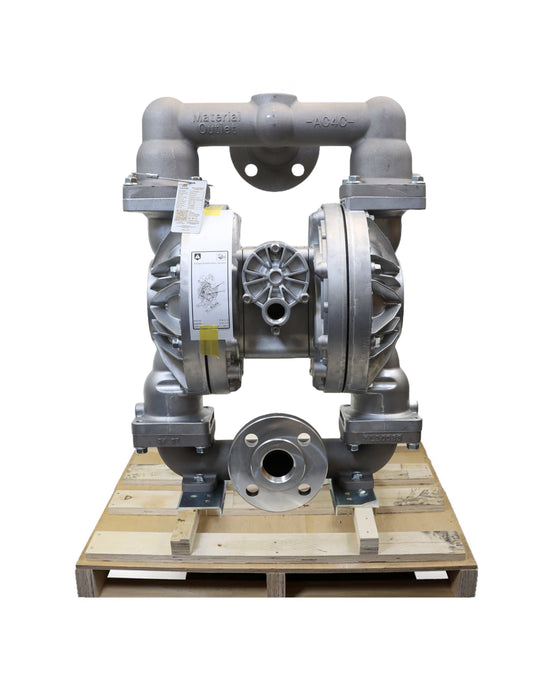

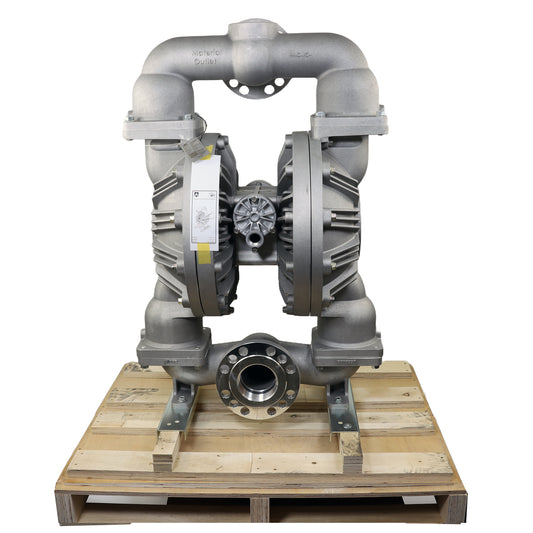

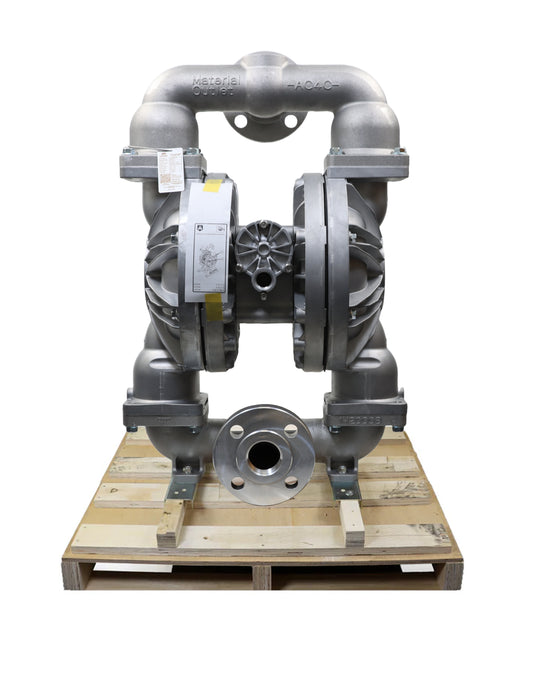

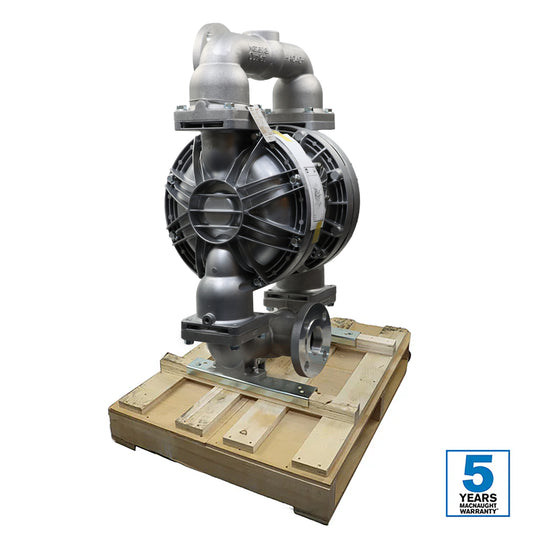

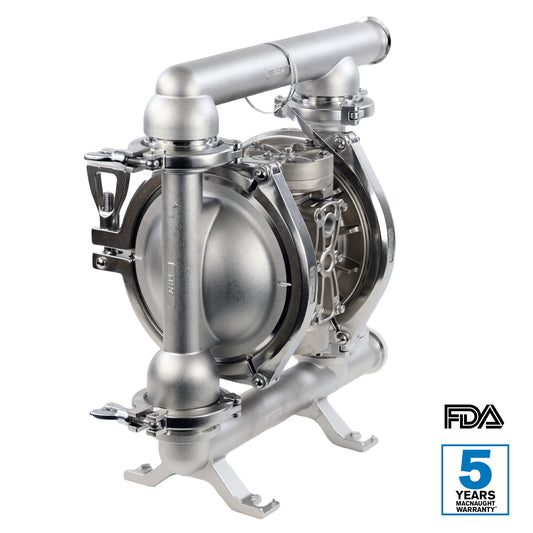

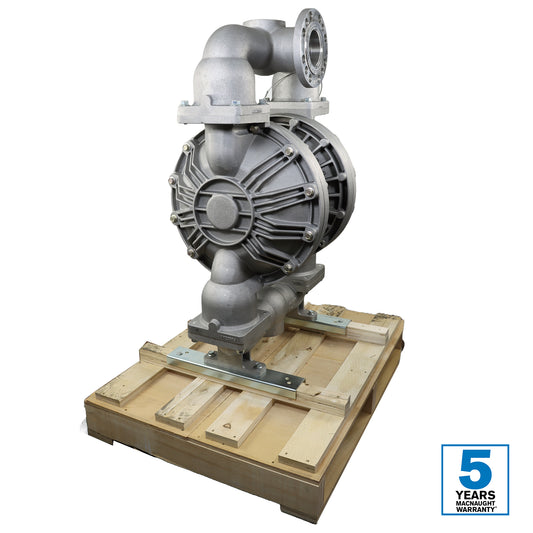

M3-AODD-Pumps
  1. High Flow Rate: For large-scale activities, up to 158 to 277 GPM
  2. Integrated Components: It is equipped with a stainless steel air inlet ball valve and an exhaust muffler for enhanced performance and noise reduction.
  3. Slurry Handling:  It has been designed to efficiently transfer high-viscosity, abrasive slurries with minimal wear.
  4. Optimized Flow Dynamics: Pump is Lightweight spool enables faster, smoother operation for improved efficiency.
  5. Easy Maintenance: Air motor is conveniently accessible for quick, hassle-free servicing.
  6. Dry-Run Capability: Operates safely without liquid, eliminating the risk of overheating.
  7. Deadhead Tolerance: Built to withstand closed discharge conditions without sustaining damage.
  8. Self-Priming Functionality: Automatically primes itself, removing the need for manual intervention.
  9. FDA Compliance: All diaphragms, check valves, seats, guides, and sealcoated Aod Pumps     meet FDA standards for safety and quality.
  10. Durable Diaphragm: Constructed with PTFE and backed by EPDM for enhanced chemical resistance and longevity.
  11. Robust Wetted Parts: Made from stainless steel and PTFE to ensure durability and corrosion resistance.

Uses of AODD pump (Air Operated Double Diaphragm Pump)

  1. Water Management: Perfect for advanced water purification systems, wastewater recycling, and sewage treatment applications.
  2. Chemical Processing: Designed to safely and precisely handle a variety of aggressive, flammable, volatile, and hazardous chemical fluids.
  3. Oil : Effectively moves petroleum-based goods through different processing and distribution phases, including lubricants, diesel, and crude oil.
  4. Pharmaceuticals: Ideal for the sterile transportation of liquid substances, active pharmaceutical ingredients (APIs), and delicate biological materials.
  5. Food & Beverage: Made to transfer edible liquids, including sauces, alcoholic beverages, juices, and flavorings, in a hygienic manner.
  6. Mining & Minerals: Designed to reliably transport slurry, tailings, and process water under harsh mining conditions.

Maintenance Tips of Air Operated Double Diaphragm Pump

  • Check diaphragms for inspection on a regular basis
  • Examine the air supply for pollutants or moisture
  • Check valves should be replaced as necessary
  • Use suitable materials for seals and diaphragms

Why Choose Macnaught?

The AODD pumps from Macnaught are designed in Japan and are long-lasting, effective, and low maintenance. For industrial users, Macnaught provides long-term value and piece of mind with a 5-year pump body guarantee.
