In-Line Fluid Flow Meter / Gallons

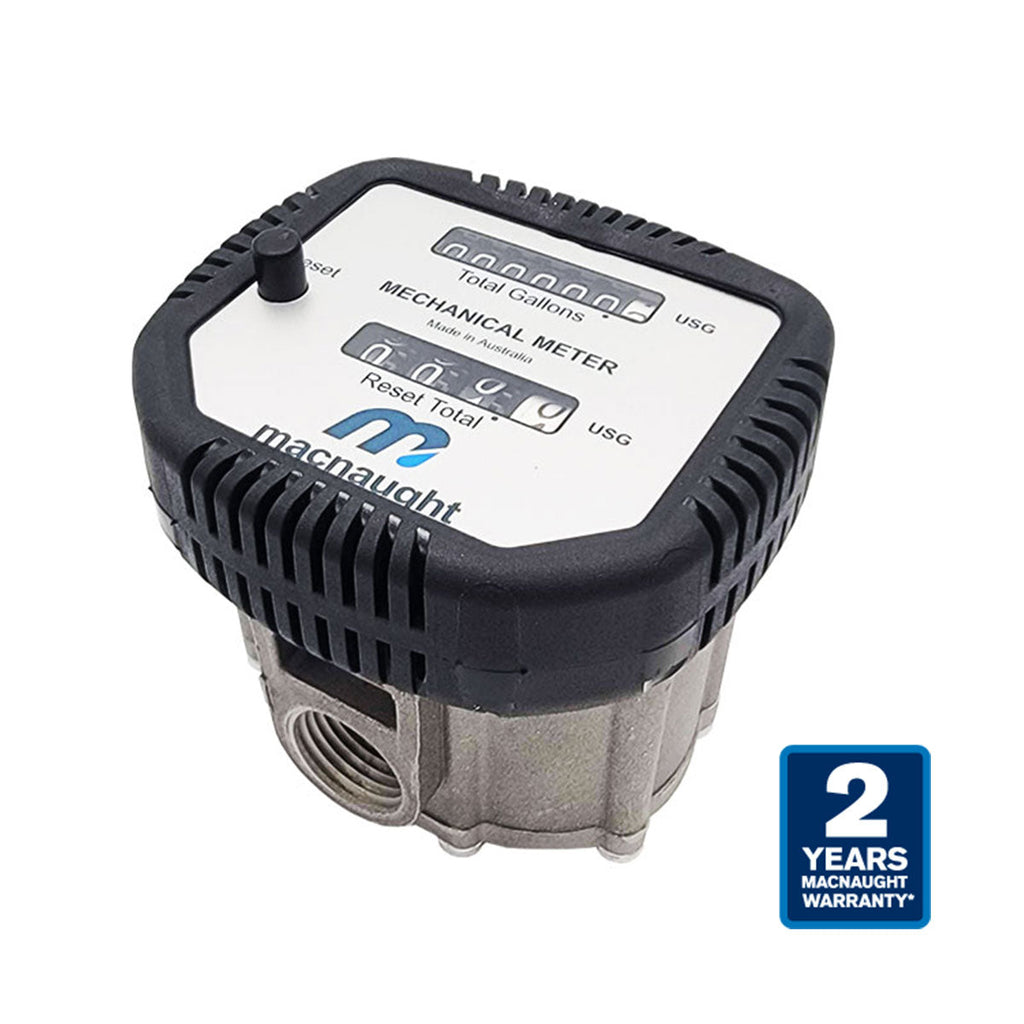

Macnaught offers the IM012M-02G in-line oval gear mechanical register with accuracy of +/- 1%. The meter has a easy to read display with both batch and cumulative gallon totals. The ½ inch NPT ports and a working pressure of up to 1,000 psi combine to allow for flow rates of up to 8 gallons a minute. Used for in-line oil monitoring applications or can be added to a non-metered oil guns. Compatible with water, oil, (up to 140W) ATF, hydraulic fluid, diesel, kerosene. All Macnaught in-line meters come with a fully supported 2 year warranty.
INCLUDES 2 YEAR WARRANTY!
Features & Benefits:
- In-line oval gear technology
- Economic and accurate fluid measurements
- East to read mechanical display
- Four digit resettable batch and seven digit non-resettable cumulative totals
- Flow rate up to 8 gallons per minute with up to SAE140 viscosity
- Compatible with Water, Oils (up to 140W), ATF, Coolant, Diesel, Kerosene
- No batteries required
Value Proposition
- Economic, versatile, accurate and reliable mechanical flow meter
Macnaught Oil Flow Meters
| Model Number |
IM012M-02G |
| Flow range |
0.26-8gal(1-30 L)/min |
| Meter / register |
Gallons Mechanical Register |
| Accuracy (flow rate) |
+/- 1% (lube oils) |
| Features |
4-digit resettable batch totaliser 7-digit accumulative totaliser |
| Protective shroud |
√ |
| Inlet port |
1/2" NPT (F) |
| Outlet port |
1/2" NPT (F) |
| Fully serviceable |
√ |
| Warranty¹ |
2 years |
| Parts guarantee² |
10 years |
| Compatible fluids |
Water, Oils (up to 140W), ATF, Coolant, Diesel, Kerosene |
Documentation
Macnaught In-line oil meter data sheet: PDF
Instruction Manual: PDF
