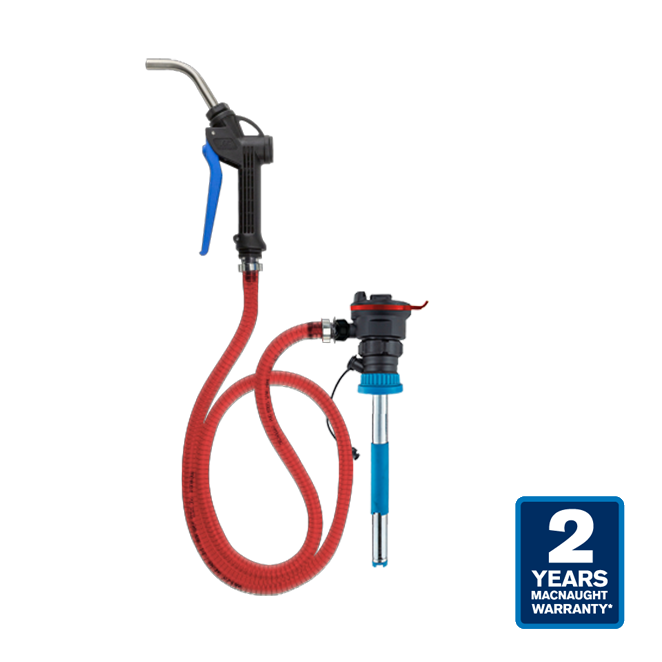

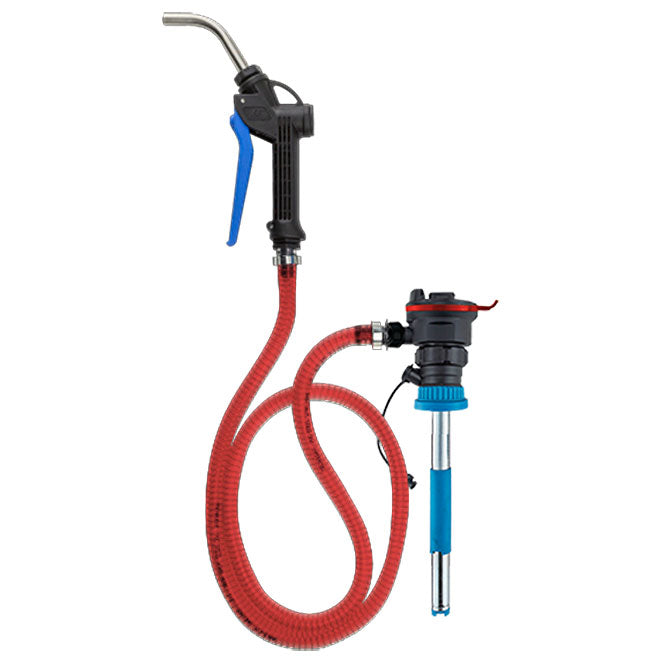

The ATF Battery Operated Pump (BOP) from Macnaught is a useful addition to any workshop for dispensing Automatic Transmission Fluids. Developed specifically for use with ATF chemistry, the BOP ATF is available to suit most common 5 gallon container sizes. Complete with ATF Stem and 5ft of 1/2″ hose with On Demand Nozzle. Delivery rate – Up to 1.5 GPM+
INCLUDES 2 YEAR WARRANTY!Macnaught BP20X-OHA Specifications
|Description||BOP20 ATF 5 gal Stem - PN# BP20X-ALA|
|Drum size||5 Gallon Containers|
|Lubricant Range||Suitable for all ATF fluids|
|Delivery Rate||Up to 1.5+ GPM @ 68F|
|Hose||5 ft of 1/2" Hose. 10ft options are available|
|Charger||45 min fast charge|
|Battery||18V Li-Ion Smart Battery 2.0Ah up to 40 GAL/Charge|
Macnaught BP20X-ALA Features and Benefits
- New modular concept
- Sealed wetted parts - zero contamination
- Fully serviceable – impeller & seal kits available
- Separate Powerhead – ATF & oils with one Powerhead 18V rechargeable 2.0Ah battery delivers up to 40GAL
- Suitable for all ATF fluids
- Flow rates up to 1.5+ GPM
- Safety lockout carry handle for simple Powerhead transfer
- On-demand flow control
- No more pumping by hand to reduce fatigue
How To Order
The BP20X-ALA Stem Kit does not come with a Powerhead, Battery, or Charger.
BOP20 5-gallon users purchase an Oil Pump Kit ( PN# BP20S-OHU ) and purchase the Stem Kit separately for differing oils, coolant, def or ATF.
The Powerhead from the Oil Pump Kit clicks on and off all BOP Stems, making this system very cost-effective and flexible.
Caution: If you do not have an existing Oil Pump Kit with Powerhead, Battery & Charger, the Stem Kit will not work.
Frequently Asked Questions
Q: Can I use a Non-Macnaught 18V Battery on the BOP?
A: No, BOP requires a Macnaught Battery
Q: Can I pump diesel with BOP?
A: No, only the rated fluids. Yellow Ring designates Hydraulic or Engine Oils, Green Ring designates Coolant or Red Ring designates ATF
Fuels of any type are very dangerous to pump and will damage the BOP seals. Only Oils, Coolant or ATF. No other fluids are warranted.
Q: Can BOP be used for Marine Outboard fills?
A: Yes, we have many Marine Mechanics using BOP for this application. You will need to modify the Nozzle Tip to accommodate the type of Outboard connection you will use
Q: Is BOP 3A or Sanitary compliant?
A: No, BOP can only be used with rated fluids.
Q: Does BOP work with 2.5 Gallon Jugs?
A: Yes, BOP20 does fit
Q: Will BOP fit into my Oil Safe or other containers?
Yes, BOP20 fits perfectly with 5-liter and 10 Liter Oils Safe Containers with their Utility Lid.
The BOP20 also fits Des Case 7-Liter and 10-Liter and Trico 3-gallon and 4-gallon containers with Pump Lids.
Q: Can I run the BOP dry?
A: No, damage will occur to the impeller if left to run dry.
Q: Is the BOP serviceable?
A: Yes, we have Impeller Kits in stock.
Q: Do you offer a meter with the BOP?
Yes – easy to install and operate > Meter Link Here
Q: My 5 Gallon Pail is an odd size, will the BOP20 work?
A: Yes, the adapter fits most pail bungs and the BOP comes with an adjustable sleeve to evacuate fluids on taller pails.
Q: My BOP is running slower at cold temperatures – why?
A: Oils thicken with lower temperatures, and cooler weather will slow the BOP flow rate. We recommend keeping oil containers as warm as possible indoors or with heating blanket wrap systems. BOP works best at 60F plus.
