FCM DIESEL ENGINE FUEL FLOW METERS

HIGH VOLUME DIESEL MEASUREMENT & CONSUMPTION FLOW METER SOLUTIONS

Macnaught’s FCM Flow Meter is well suited to provide .1% Accurate Diesel Flow Measurement within high volume diesel fuel consumption markets. Manage Diesel Green House Gas Emission requirements with our robust FCM Meter and Flow Computer solution.

The Macnaught FCM Oval Gear Flow Meter Includes:

  • Very high accuracy of 0.1% of flow
  • Built In Temperature Sensors providing for diesel compensation values
  • No Flow Conditioning Required – perfect for tight installs
  • Two sizes with wide turndowns – covers most small to large engine fuel measurement
  • Innovative Magnet Mounting design, no mechanical attachment required

Macnaught is the largest Oval Gear Flow Meter MFG Globally and has been since 1964. Our FCM offering has been utilized in Large Engine Mining Truck Diesel Fuel Measurement for many years. Hundreds of Large Engine FCM Meter sets have been installed in USA, Canada and South America. Cost effective, easy to install and maintain – all in a uniquely robust design package.

 Macnaught FCM Flow Meter Overview
Macnaught USA MX Series FCM Flow Meter Overview Video

FCM DIESEL ENGINE FUEL FLOW METERS DESIGNED TO ASSIST GREEN HOUSE GAS ( GHG ) EMMISION REPORTING OPTIMIZE ENGINE EFFICENCY AND PERFORMANCE

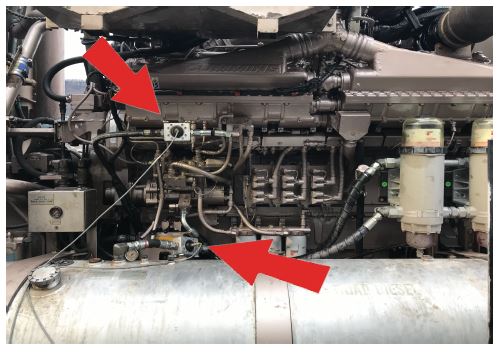

• Fracking – Diesel Engine Consumption
• Upstream Drilling – Generator Diesel Fuel Consumption
• Mining – Truck and Equipment Diesel Fuel Consumption
• General – Generators, Boilers, Marine, Rail, Remote Utlities

Receive an Immediate Flow Meter Proposal or Call our Meter Hotline - (813) 896-2710

Request a Quote

MX Positive Displacement Meters | MX ExD Intrinsically Safe Meters | M-Series Mechanical Register Meters | M-Series Digital Flow Meters

Technical Specifications

MODEL MX12FCM-02 MX25FCM-02
Port Size 3/4” NPT 1” NPT
Flow Range 2 - 30 LPM 6 - 45 LPM
Max Pressure 150 PSI 150 PSI
Temperature - 40°C to 80°C - 40°C to 80°C
Accuracy ±0.1% of reading ±0.1% of reading
K-Factor 7-point calibration 7-point calibration
IP Rating IP 67 IP 67
Hall Sensor 2x NPN with pull up resistor 2x NPN with pull up resistor
Temp Sensor PT100 PT100
DIN Connection M8 6 position M8 6 position

Display

MODEL F127
Signal Input Reed switch NPN - Hall effect sensor
Temperature Input PT100
Signal Output 4 - 20mA (Loop Powered / Passive)
Power Supply 8 - 30 VDC
IP Rating IP67
Mounting Remote Mount
Cable Entry (2) x PG9 and (1) x M20
Backlight Yes
Temperature - 40°C to 80°C
FMM Display
